| Highly integrated industrial LCD display modules with 128x64 resolution, ultra-low power consumption, and flexible SPI/parallel interfaces. Ideal for industrial control, medical devices, automotive electronics, and smart home applications, providing reliable, long-lasting, and professional visualization solutions for instrumentation and specialized equipment. | |||||||||

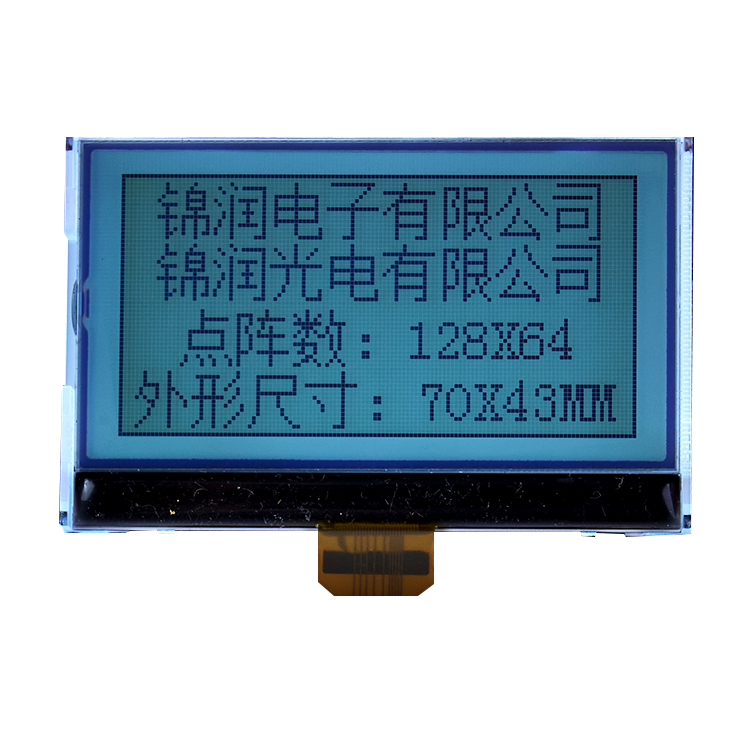

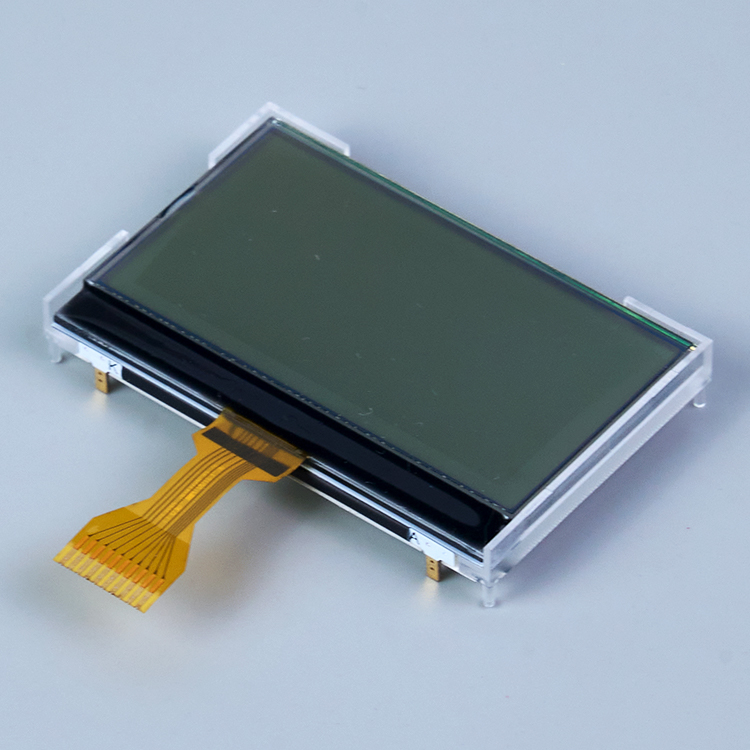

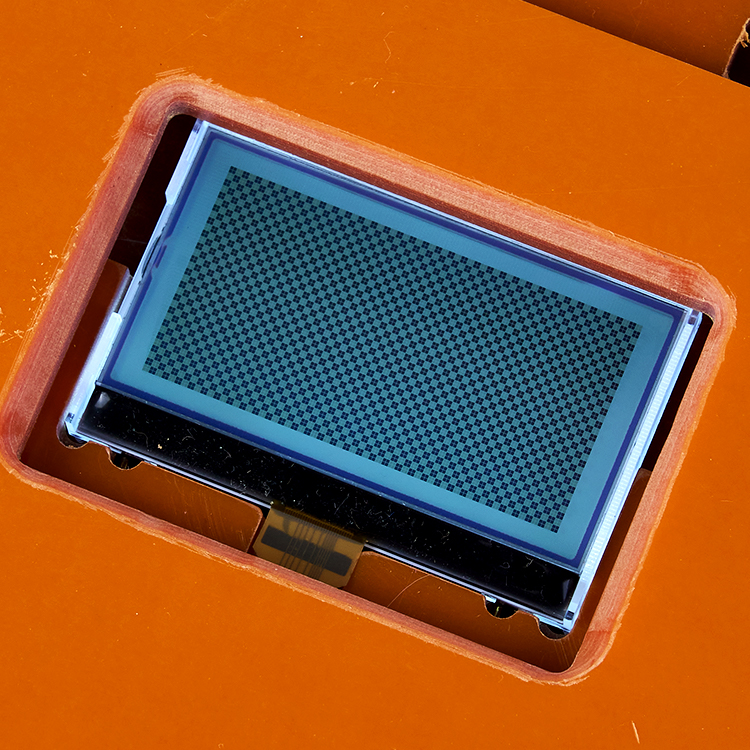

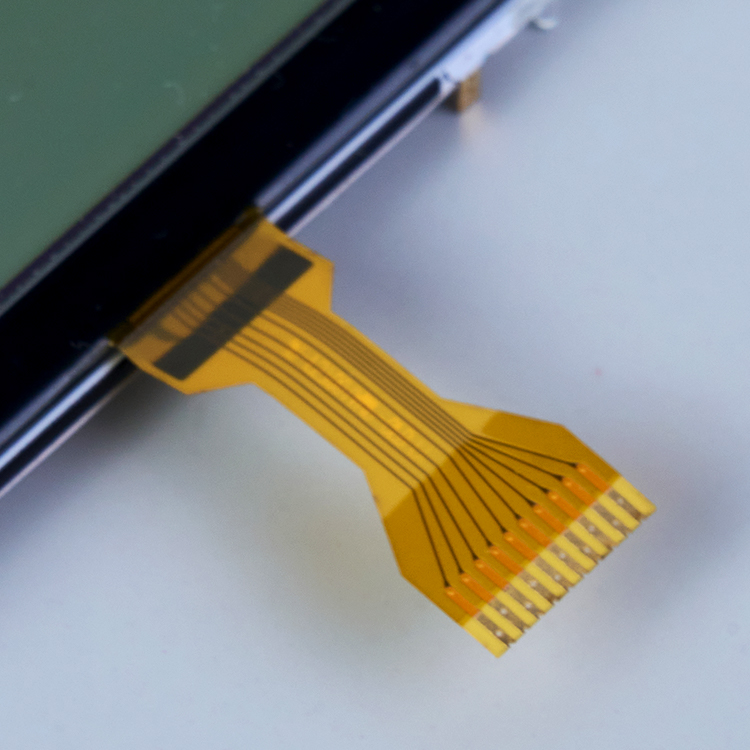

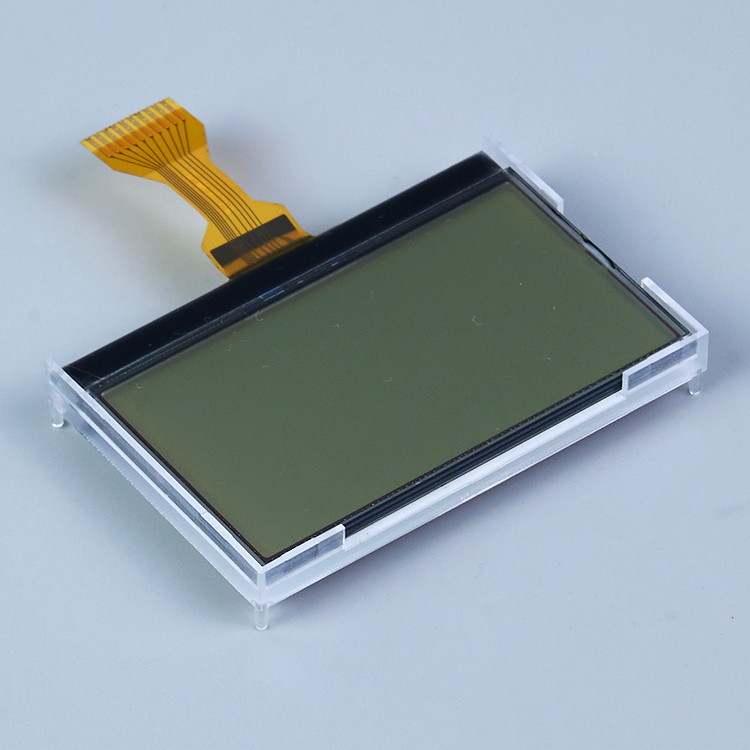

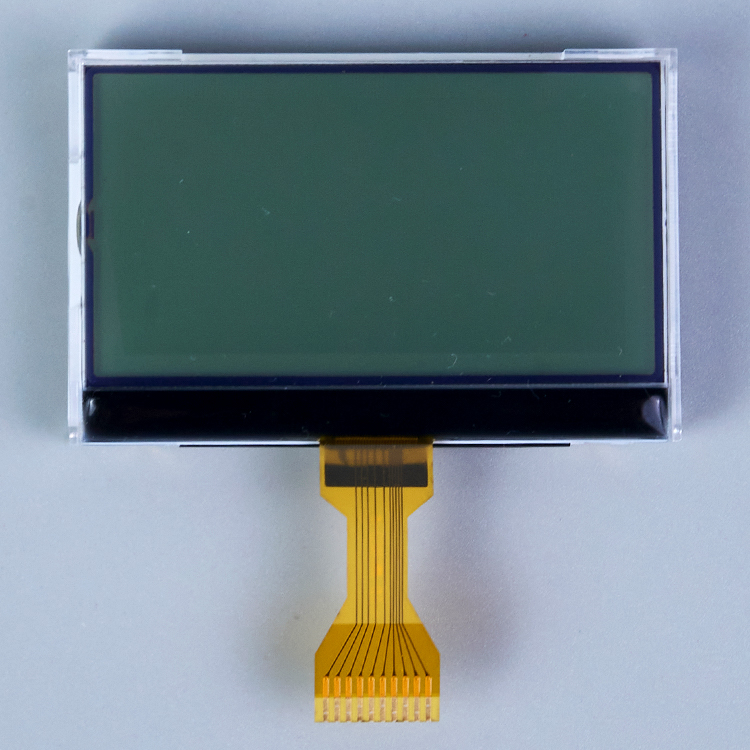

This custom industrial LCD display module features a 128x64 “golden size” graphic dot matrix, capable of displaying Chinese, English, graphics, and UI elements with clear, high-quality visuals. Equipped with the ST7567 chip with built-in RAM and power circuit, it simplifies peripheral design and reduces overall system cost. The module supports both SPI and parallel interfaces for easy integration with a wide range of MCUs.
With extremely low power consumption, it is perfect for battery-powered devices. The module offers wide operating temperature range (-30℃~+80℃), long lifespan, and strong anti-interference capability, ensuring stable performance in harsh industrial, medical, automotive, and professional environments. LCD technology eliminates organic material aging, providing reliable, maintenance-free operation.
Practical Display: 128×64 resolution, the “golden size” for graphic dot matrix screens, providing ample space to present detailed information clearly.
Highly Integrated: Features a built-in RAM and power circuit, simplifying external circuitry and reducing overall system costs.
Ultra-Low Power Consumption: Designed for energy efficiency, making it ideal for portable and battery-powered devices.
Flexible Interface: Supports both SPI and parallel connections for easy integration with a wide range of MCUs.
Cost-Effective Solution: High integration delivers superior performance while maintaining excellent value.
| | | |
Highly Integrated ST7567 Chip: Built-in RAM and power circuit simplify peripheral design, reduce system complexity, and lower overall costs.
Ample Display Capability: 128×64 “golden size” graphic dot matrix screen supports Chinese, English, graphics, and UI elements, providing enough information for most applications.
Ultra-Low Power Consumption: Optimized for battery-powered devices, offering battery life far exceeding that of color screens.
Exceptional Reliability: Wide operating temperature range, long lifespan, and strong anti-interference performance ensure stable operation in industrial, medical, automotive, and other harsh environments.
Flexible Interface Options: Supports SPI and parallel connections, enabling easy integration with various MCUs and abundant development resources.
Wide Operating Temperature Range: Operates reliably from -30℃ to +80℃ under diverse environmental conditions.
Long Lifespan & High Stability: LCD technology avoids organic material aging, ensuring durable and maintenance-free performance.
Proven Technology: Mature manufacturing process with high yield and consistent quality.
This is the most classic and widely used application for our LCD modules.
Application Scenarios: CNC machine tool operation panels, PLC controller status displays, frequency converter panels, testing and measuring instruments (e.g., oscilloscopes, multimeters), smart meters, water/gas meters, and auxiliary displays for industrial touchscreens.
Reasons for Selection:
High Reliability: Wide operating temperature range (typically -20℃ to +70℃) ensures stable performance in harsh industrial environments.
Rich Information Display: 128×64 resolution provides sufficient space to show multiple lines of parameters, real-time data, simple waveforms, settings menus, and alarm notifications.
Cost Controllable: Optimized design ensures functional requirements are fully met while keeping production costs efficiently manageable.The cost is much lower than that of color TFT screens.
 |
|
Application Scenarios: Blood glucose meters, electronic blood pressure monitors, pulse oximeters, portable electrocardiogram (ECG) machines, and infusion pump display interfaces.
Reasons for Selection:
Ultra-Low Power Consumption: Significantly extends battery life, a critical requirement for portable medical devices.
Clear and Precise Display: Accurately shows physiological parameters, measurement results, waveforms, and operational instructions.
High Stability and Reliability: Meets the stringent performance and safety standards required for medical equipment.
|
|
Application Scenarios: In-car diagnostic devices (OBD), reverse radar displays, car audio information screens, on-board computer displays, and tire pressure monitoring system (TPMS) terminals.
Reasons for Selection:
Environmental Adaptability: Operates reliably under wide temperature fluctuations and withstands electromagnetic interference typical inside vehicles.
Wide Viewing Angle: Provides clear, easy-to-read information from the driver’s perspective.
Practical Functionality: Perfectly suited for displaying vehicle data, diagnostic information, audio lists, and other essential in-car information.
Application Scenarios: Smart thermostats, air purifier control panels, advanced remote controls, coffee machines, washing machine status screens, and fitness equipment dashboards.
Reasons for Selection:
Enhanced User Experience: Offers a more intuitive and flexible graphical interface compared to traditional segmented screens.
High Cost-Effectiveness: Improves the perceived quality of household appliances while keeping overall device costs under control.
Simple Integration: SPI interface allows easy connection with various main control chips.
Application Scenarios: Communication testing devices, network switch/router status screens, scientific research instruments, electronic scales, and security alarm panels.
Reasons for Selection:
Professional Focus: Single-color display ensures focused, glare-free visualization, ideal for professional environments.
Customizable Display: Freely define content, draw logos, and create custom icons to meet specific application needs.
Long Lifespan: No risk of screen burn-in, suitable for devices requiring continuous or year-round operation.
