Industrial-Grade FSTN LCD

Availability:

Quantity:



The 128x64 graphic LCD module (FSTN monochrome) excels in industrial control, medical devices, and automotive electronics. It offers practical 128x64 resolution for graphics/text, wide-temperature stability, and low power—addressing the need for reliable human-machine interaction in harsh environments.
Inquire Add to Basket

Feature Description

Specification information

Application fields

FAQ

Download

1. Characteristic description

Practical Graphic Display

128x64 resolution balances information volume and cost: displays 4 lines of Chinese (8/line) or 8 lines of English, plus simple graphics/icons (e.g., waveforms, status symbols).

FSTN technology ensures high contrast and 6 o’clock wide viewing angle, suitable for panel-mounted devices.

Durable & Energy-Saving

-20℃~+70℃ wide temperature range and anti-electromagnetic interference design, stable for industrial use.

No backlight (optional LED backlight) reduces power consumption, ideal for portable industrial tools.

2. Performance meets

Environmental Stability

Tested in high/low temperature and high humidity to ensure reliable operation in industrial/medical settings.

Anti-Interference & Long Lifespan

Resists external electromagnetic interference; COB packaging and high-quality materials ensure a lifespan of over 50,000 hours.

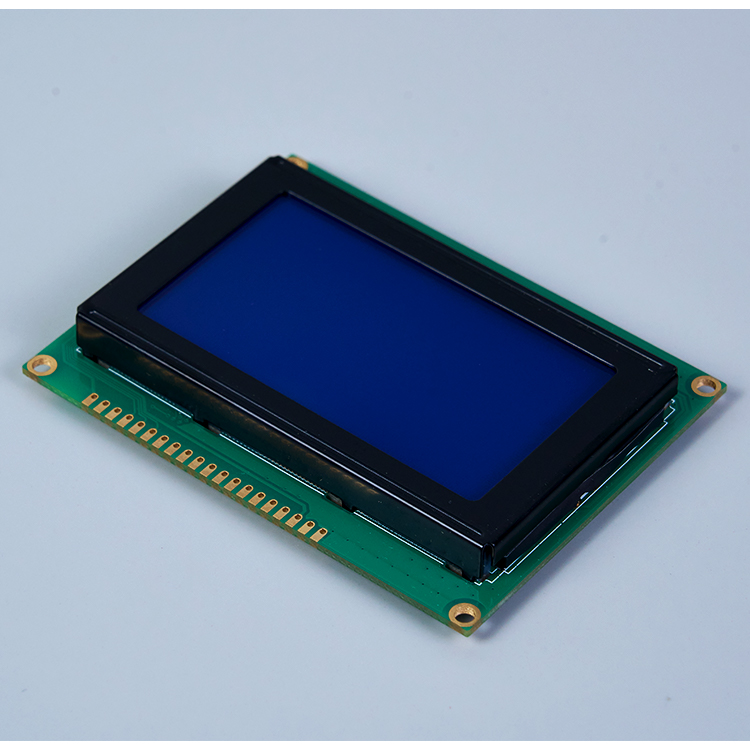

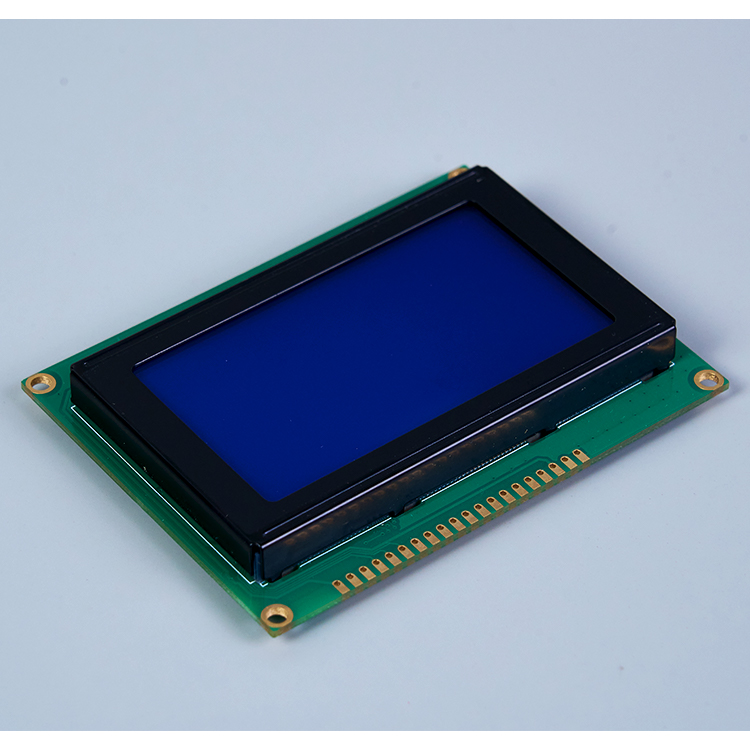

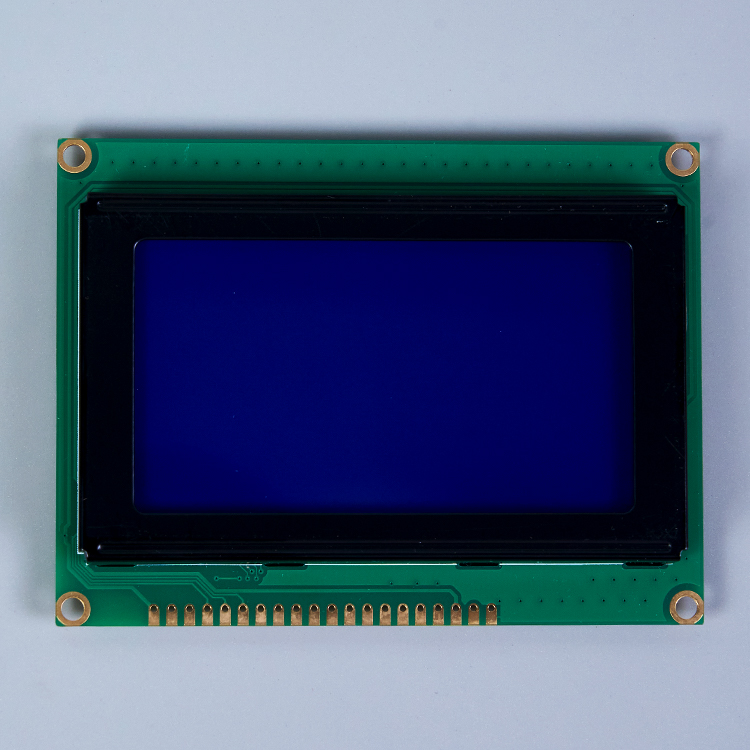

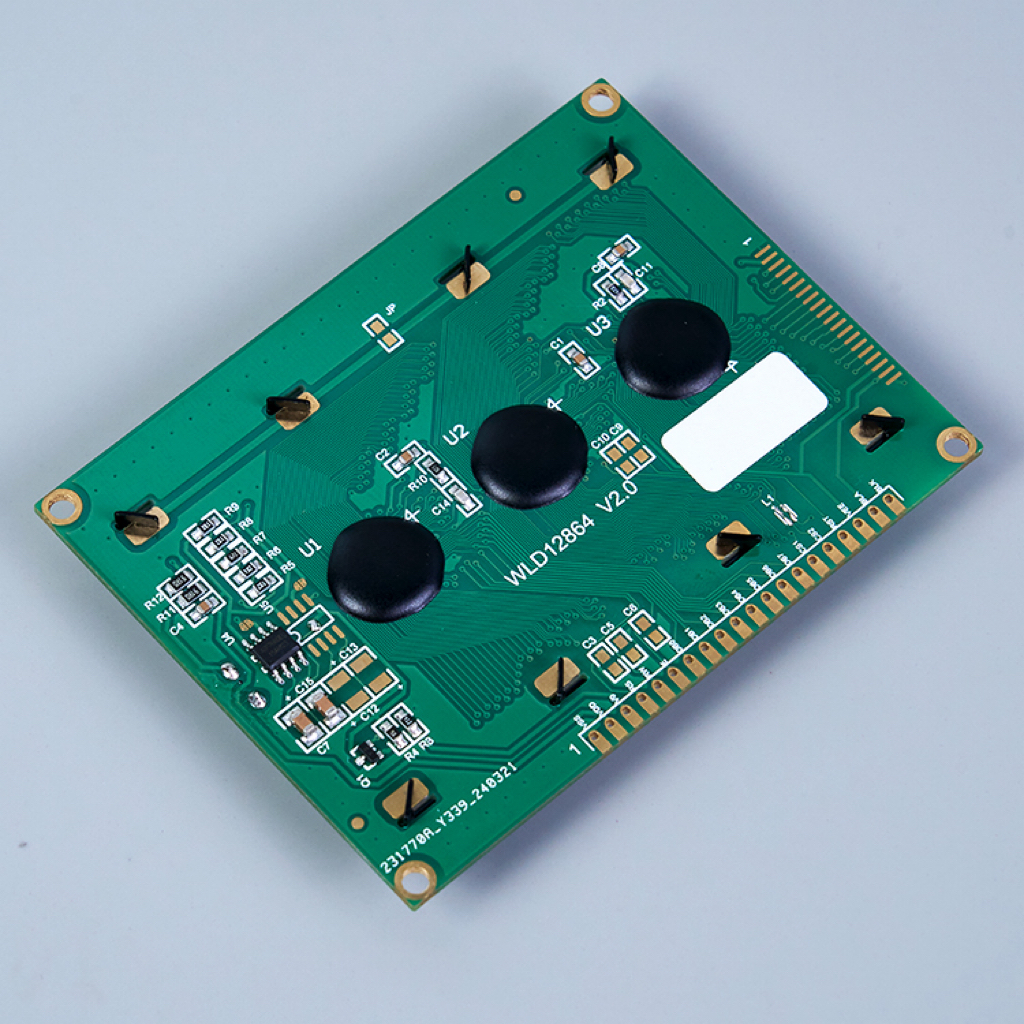

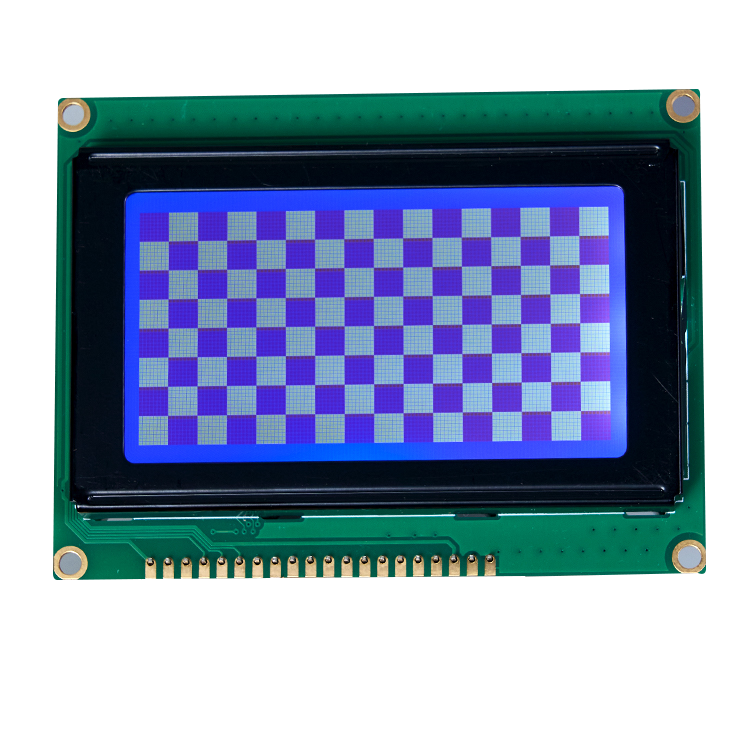

This graphic LCD module has a model number of 128644, with a lattice number of 128×64. It uses FSTN display technology and has a viewing angle oriented at 6 O’Clock, with an interface type of 6800. The drive IC combination is SBN6400 plus two SBN0064 chips. Its overall dimensions are 93mm × 70mm × 12.5mm, and the VA area size is 70.6mm × 43mm. The power supply voltage is 3.3V, and it adopts a positive display mode with semi-transparent characteristics. The module structure includes LCD, BL (backlight), and PCB, with a connection method of PITCH 2.54×20PIN. The backlight circuit uses 3 LEDs, with a forward current (If) of 45mA and a forward voltage (Vf) of 3.0V.

Product specification information
Model	128644
Lattice number	128*64
Display type/perspective	FSTN\| 6 O’CLOCK
Interface	6800
Drive IC	SBN6400+SBN0064*2
Overall dimensions	93mm X 70mmX 12.5mm
VA area size	70.6mm X 43mm
Power supply voltage	3.3V
Display mode	Positive display, semi transparent
Structure	LCD+BL+PCB
Connection method	PITCH 2.54*20PIN
Backlight circuit	3LED If=45mA, Vf =3.0 V

Industrial control and instrumentation

CNC machine tools, PLC controllers, testing and measuring equipment (such as oscilloscopes, multimeters), smart meters

Advantages: Display parameter settings, real-time data, operating status, and simple waveforms; High stability, suitable for industrial environments

Industrial-Grade FSTN LCD for Oscilloscopes

Automotive electronics

car audio system (audio display), driving recorder, some car dashboard information display

Advantages: Display information and status prompts; Wide temperature operation (usually -20 ℃~+70 ℃), adapted to changes in the car's interior environment

Medical equipment

portable monitor, blood glucose meter, infusion pump

Advantages: Display physiological parameters, equipment status, and alarm information; Strong reliability, meeting the stringent stability requirements of medical equipment

Smart Home and Consumer Electronics

Smart Air Conditioning Control Panel, Water Heater Control Screen, Attendance Machine, Home Appliance Control Panel

Advantages: Display status, settings menu; Cost controllable, meets basic display needs and is durable

Other electronic products

communication devices, industrial remote controls, electronic tags (non retail price tags), POS machine terminals

Advantages: As a human-computer interaction interface, it displays information; Rich interfaces (supporting parallel/serial ports), easy to connect with the main controller
