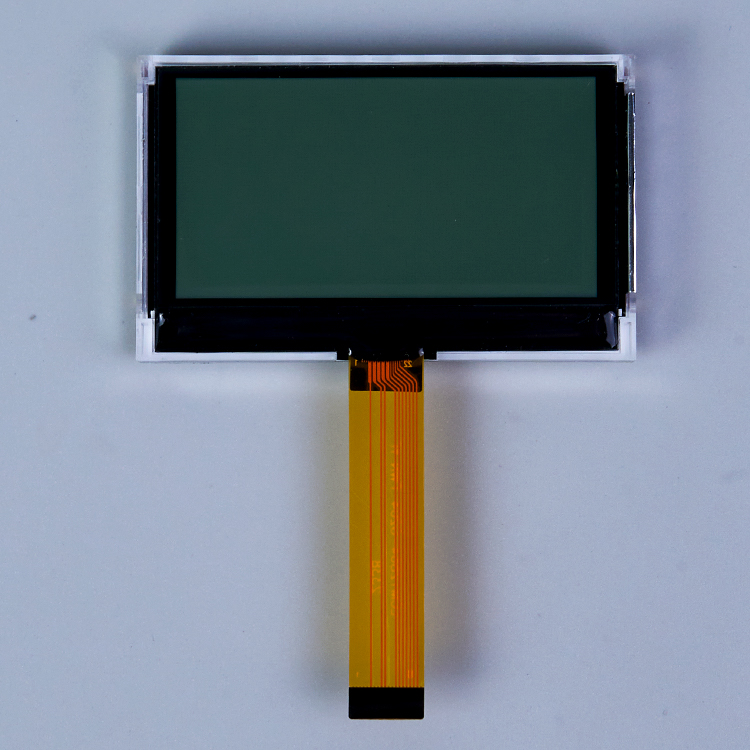

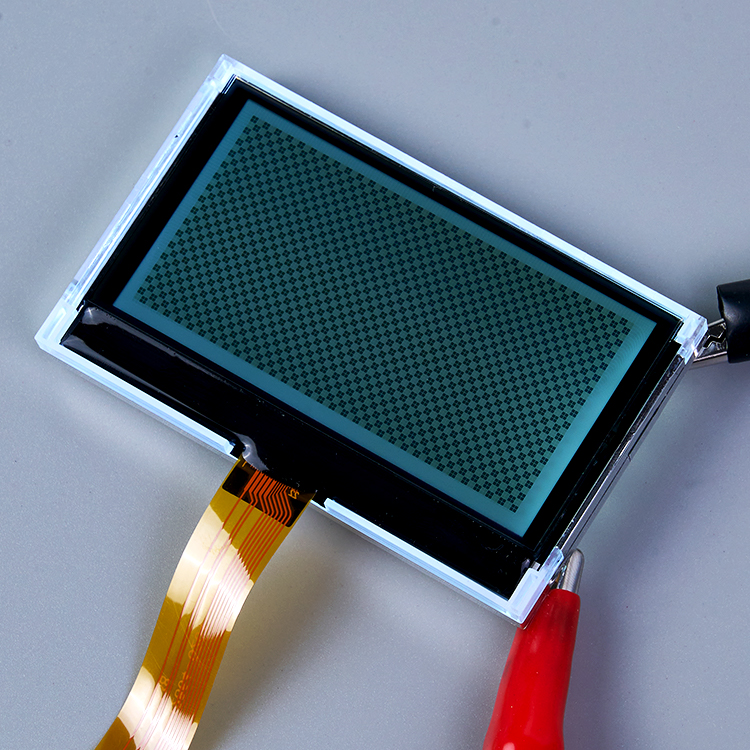

Long-Lifespan 128x64 FSTN LCD for Automotive

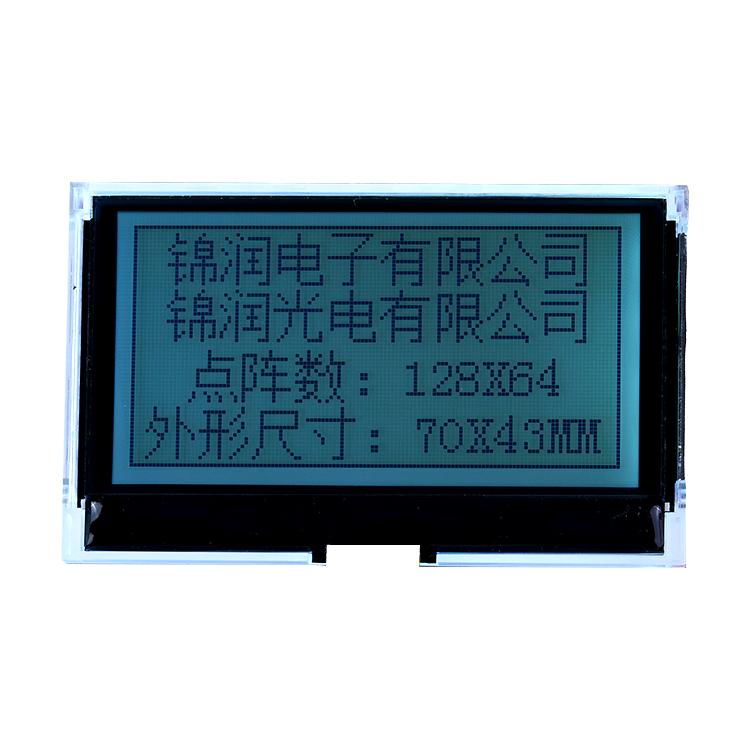

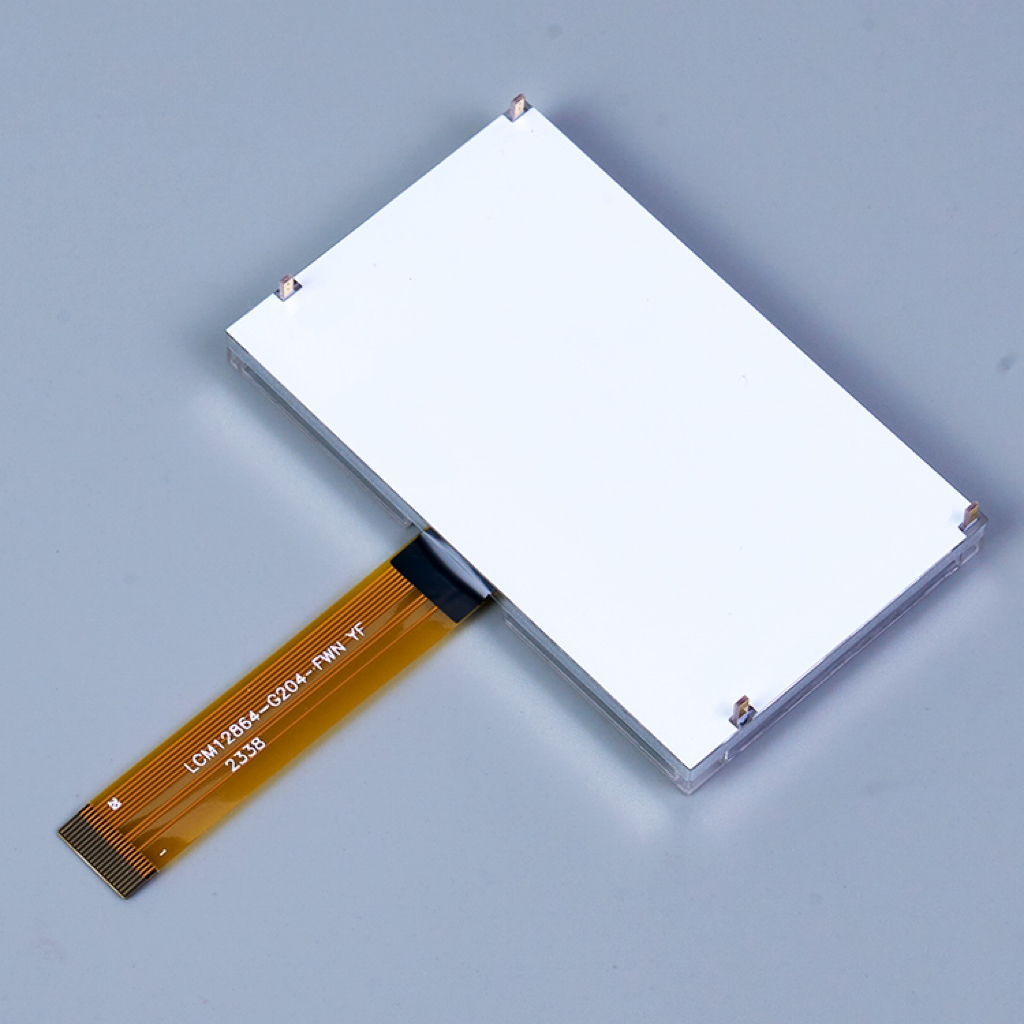

This long-lifespan LCD module is model G204, with a 128*64 dot matrix specification. It uses an FSTN display type with a 6 O’CLOCK viewing angle, a 4L_SPI interface, and an ST7567 driver IC. Its overall dimensions are 70mm × 43mm × 10mm, and the VA area size is 58mm × 29.5mm. The power supply voltage is 3.3V, and it adopts a positive display mode with full transparency support. The connection method is a PITCH 0.5 × 20PIN plug-in type, and the backlight circuit includes 4 LEDs, with an operating current (If) of 60mA and a forward voltage (Vf) of 4V.

Automotive-Grade Reliability & Lifespan

When deploying electronics in vehicular or heavy-machinery contexts, component failure is not an option. This display is forged specifically for the unforgiving nature of automotive and industrial ecosystems, boasting an extraordinary operational lifespan that outpaces conventional alternatives.

The core illumination engine utilizes premium LED components rated for over 50,000 hours of continuous luminance, ensuring the screen remains vibrant throughout the entire lifecycle of your host device.

• Vibration Resistance: Engineered to withstand the relentless mechanical shocks and high-frequency vibrations inherent in moving vehicles and active machinery.

• Electromagnetic Immunity: Advanced shielding techniques prevent external electrical noise from corrupting the display data, maintaining signal integrity in complex engine compartments.

• Minimized Maintenance: The exceptional durability drastically lowers the total cost of ownership by eliminating the need for frequent screen replacements and field servicing.




Display Performance & Sunlight Readability

Navigating complex data under the glaring midday sun or in the dead of night requires a display that dynamically adapts to ambient lighting. Utilizing advanced Film-compensated Super-Twisted Nematic (FSTN) technology, this module achieves exceptionally deep blacks and brilliant backgrounds, pushing contrast ratios far beyond traditional STN thresholds.

The integration of a transflective polarizer is the secret behind its optical versatility, allowing the screen to harness external light rather than fighting against it.

• Sunlight Harvesting: In direct sunlight, the transflective layer reflects ambient rays to illuminate the display natively, rendering data perfectly crisp without draining battery power.

• Nighttime Clarity: During low-light operations, the efficient LED backlight takes over, projecting a smooth, uniform glow that prevents eye strain.

• Expansive Viewing Angles: Operators can easily read critical dashboard metrics from extreme off-axis positions, ensuring safety and convenience for both drivers and passengers.




Extreme Environmental Adaptability

Climatic volatility poses a severe threat to standard electronic components, often causing screens to freeze, crack, or overheat. This automotive-grade LCD is fortified to conquer the most severe weather conditions, operating flawlessly across a staggering temperature spectrum from a freezing -30°C to a blistering +80°C.

Whether integrated into a snowmobile dashboard in the Arctic or a high-voltage charging station in the desert, the display fluid remains agile and responsive.

• Thermal Stability: Specialized liquid crystal fluids prevent crystallization in sub-zero temperatures and resist isotropic state transitions during extreme heat exposure.

• Moisture and Dust Defense: The meticulously sealed module architecture prevents condensation ingress and particulate contamination, safeguarding the internal electronics.

• All-Weather Deployment: Perfect for outdoor kiosks, marine navigation systems, and agricultural machinery that face unpredictable and aggressive weather patterns daily.




Flexible Interface & Low Power Integration

Accelerating your time-to-market requires components that speak your system's language effortlessly. Built with a highly responsive, integrated drive controller, this FSTN LCD simplifies the complex handshake between the display and your primary microcontroller (MCU).

By offering a suite of versatile communication protocols, your engineering team can seamlessly embed this screen into legacy systems or cutting-edge architectures without rewriting extensive codebases.

• Protocol Versatility: Native support for SPI, I2C, and 8-bit parallel interfaces provides maximum flexibility for various processing environments.

• I/O Optimization: The streamlined communication pathways significantly reduce the pin-count requirement on your MCU, freeing up valuable resources for other critical vehicle functions.

• Energy Efficiency: Designed to draw minimal current, this module excels in battery-operated and prolonged-standby scenarios, preserving the host vehicle's power reserves.




Deep Customization Capabilities

No two hardware projects are exactly alike, and off-the-shelf solutions often force unwanted design compromises. We empower your product development with extensive structural and aesthetic customization options, ensuring the display module molds perfectly to your unique chassis and brand identity.

From the precise curvature of the cover glass to the specific routing of the flexible printed circuits, every element can be tailored to your exact specifications.

• Flexible Connectivity: Customize the length, shape, and pinout definitions of the FPC to navigate tight internal enclosures with ease.

• Touch Integration: Seamlessly bond Capacitive Touch Panels (CTP) or Resistive Touch Panels (RTP) to create intuitive, interactive user interfaces.

• Premium Glass Treatments: Enhance the tactile feel and optical clarity with custom cover glass solutions featuring anti-fingerprint (AF), anti-glare (AG), and high-hardness coatings.




Strict QC & Long-term Supply

Securing a reliable component pipeline is paramount for large-scale manufacturing success. As a dedicated supplier, we implement an uncompromising automotive-grade quality control framework, subjecting every display module to punishing stress tests before it ever reaches your assembly line.

We understand that redesigning a product due to unexpected component obsolescence is a costly nightmare, which is why we guarantee unwavering availability.

• Rigorous Stress Testing: Every batch endures extreme temperature/humidity cycling, high-temperature aging, and severe drop tests to guarantee zero-defect shipments.

• Lifecycle Assurance: Our commitment to long-term supply stability ensures you can confidently plan multi-year production runs without fear of sudden discontinuation.

• Consistent Yields: By maintaining strict oversight over our raw material sourcing and cleanroom manufacturing processes, we deliver identical optical and physical performance from the first unit to the millionth.

Industrial Control & HMI

This is its most classic and widely used field.

Application scenarios: CNC machine tool operation panel, PLC controller status display, frequency converter panel, testing and measuring instruments (such as oscilloscopes, multimeters), smart meters/water meters/gas meters, auxiliary display of industrial touch screens.

Reason for selection:

High reliability: Wide temperature characteristics (usually -20 ℃~+70 ℃) suitable for harsh industrial environments.

Rich information display: 128x64 resolution is sufficient to display multiple lines of parameters, real-time data, simple waveforms, setting menus, and alarm information.

Cost controllable: Under the premise of meeting functional requirements, the cost is much lower than that of color TFT screens.

 Portable Medical Devices

Application scenarios: blood glucose meter, electronic blood pressure monitor, blood oxygen saturation monitor, portable electrocardiogram (ECG) machine, infusion pump display interface.

Reason for selection:

Extremely low power consumption: greatly extends the battery life of battery powered devices, which is a key indicator of medical equipment.

Clear display: able to clearly display physiological parameters, measurement results, waveforms, and operating instructions.

Strong stability: meets the stringent requirements of medical equipment for stability and reliability.

 Automotive Electronics

Application scenarios: In car diagnostic device (OBD), reverse radar display, car audio information screen, on-board computer display, tire pressure monitoring system (TPMS) display terminal.

Reason for selection:

Environmental adaptability: able to withstand wide temperature changes and electromagnetic interference inside the car.

Wide viewing angle: Clear and easy to read from the driver's perspective.

Practical Function: Perfectly adapted to display vehicle data, diagnostic information, audio lists, and other needs.

 Smart Home & Consumer Electronics

Application scenarios: smart thermostat, air purifier control panel, advanced remote control, coffee machine, washing machine status screen, fitness equipment (such as treadmill) dashboard.

Reason for selection:

Good user experience: It can provide a more user-friendly and flexible graphical interface than a segmented screen.

High cost-effectiveness: While enhancing the sense of grade for household appliances, it effectively controls the overall cost of the machine.

Simple interface: SPI interface facilitates connection with various main control chips.

 Instrumentation & Professional Equipment

Application scenarios: Communication testing equipment, network switch/router status screens, scientific research instruments, electronic scales, security alarm panels.

Reason for selection:

Strong sense of professionalism: Single color screen displays data with focus and non glare, suitable for professional occasions.

Customization flexibility: You can freely define display content, draw logos, and customize icons.

Long lifespan: No risk of screen burn-in, suitable for devices that require long-term or even year-round power on operation.

Why Choose Us

Partnering with a proven manufacturer transforms your supply chain from a potential risk into a strategic advantage. We bring decades of specialized expertise in optical engineering and high-volume production, acting as an extension of your own research and development team. Our state-of-the-art fabrication facilities are optimized for precision, scalability, and relentless quality enforcement.

When you source your display solutions through us, you are investing in a seamless, end-to-end partnership designed to elevate your final product.

• Direct-from-Source Efficiency: Bypassing intermediaries ensures you receive highly competitive pricing structures for large-scale procurement, maximizing your project's profitability.

• Agile Engineering Support: Our dedicated technical teams collaborate directly with your engineers, providing rapid prototyping and swift troubleshooting to accelerate your development cycles.

• Global Compliance: All display modules are manufactured in strict adherence to international environmental and safety standards, ensuring smooth regulatory approvals for your end products.

• Scalable Production: Whether you require an initial pilot run or massive continuous rollouts, our flexible manufacturing lines scale instantly to meet your exact demand fluctuations.

Why is it suitable for automotive electronics?

It resists temperature fluctuations, vibrations, and electromagnetic interference—key for in-car environments.

How long is the module’s lifespan?

It has a lifespan of over 100,000 hours under normal automotive use.

Can it display waveforms (e.g., for car ECUs)?

Yes, 128x64 resolution supports simple waveform display for diagnostic data.

Can the display module operate reliably in extreme winter conditions?

Absolutely. The display utilizes specialized wide-temperature liquid crystal fluids that prevent freezing and sluggish response times. It is officially rated to operate flawlessly in temperatures as low as -30°C, ensuring instant data rendering for vehicles and industrial machinery deployed in severe winter climates.

What are the primary differences between the COG and COB module structures offered?

Chip-On-Glass (COG) mounts the driver IC directly onto the glass substrate, resulting in a highly compact, ultra-thin profile ideal for space-constrained designs. Chip-On-Board (COB) mounts the IC on a robust PCB, which increases the module's overall thickness but offers superior physical durability and easier mounting for heavy-duty industrial applications.

Is it possible to integrate a custom touch panel with this specific FSTN LCD?

Yes, we offer comprehensive optical bonding services to integrate either Capacitive Touch Panels (CTP) or Resistive Touch Panels (RTP). We can also customize the cover glass with specific thickness requirements and surface treatments like anti-glare or anti-fingerprint coatings to match your user interface requirements.

How do you ensure the stated 50,000-hour lifespan of the LED backlight?

We achieve this exceptional lifespan by sourcing premium-grade LED chips and implementing advanced thermal management within the module's architecture. Furthermore, our rigorous quality control process includes accelerated high-temperature aging tests to verify luminance degradation rates, ensuring the backlight maintains its brightness well beyond the 50,000-hour benchmark.
