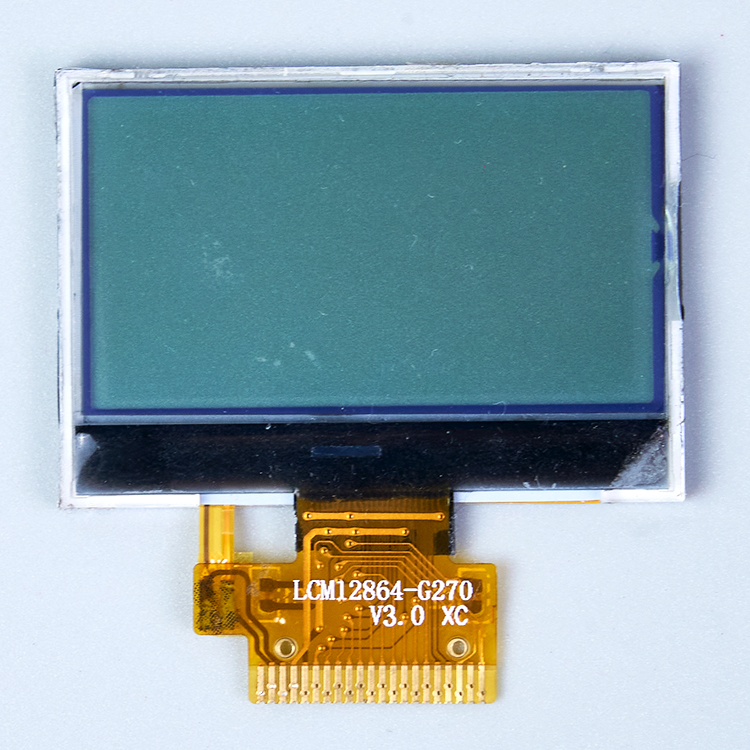

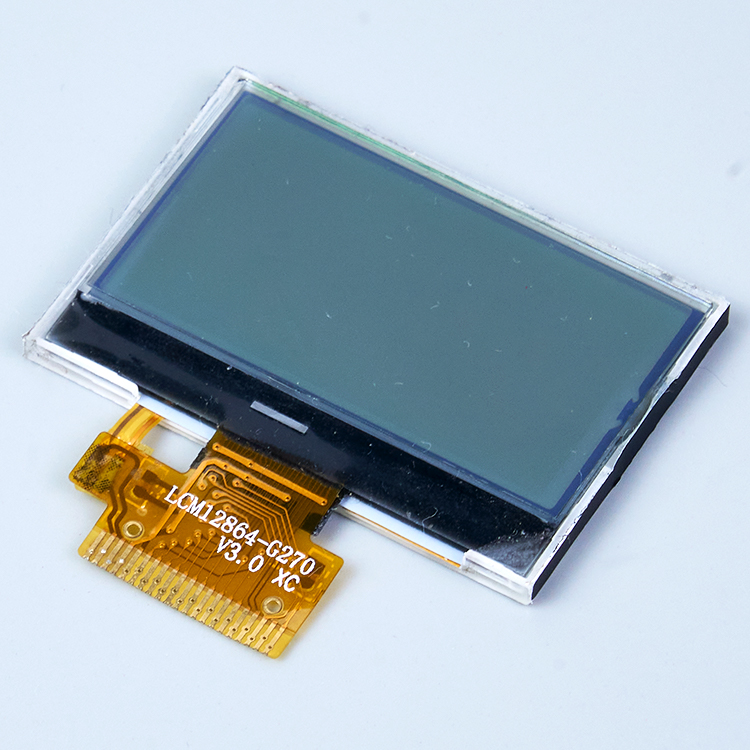

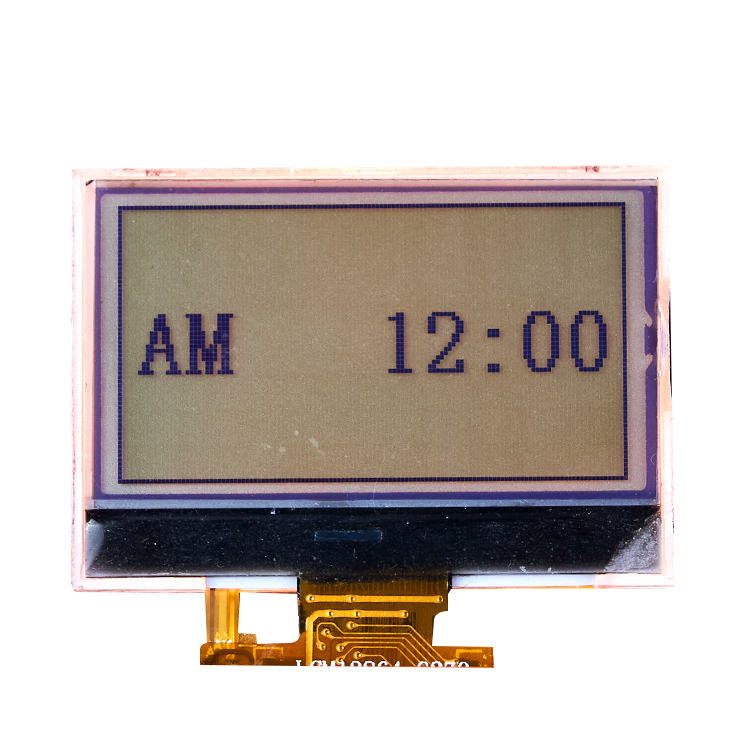

128x64 Mono Positive Transmissive Orange LCD

This LCD matrix uses Model G270, with a lattice number of 128*64 and an FSTN display type, supporting a positive, semi-transparent display mode and a 12 o’clock viewing angle. Its overall dimensions are 45mm×31.7mm×3mm, and the VA area size is 40mm×22mm. It is equipped with 8080/4L_SPI interfaces and uses the ST7567 driver IC. The power supply voltage is 3.3V, and the structure combines LCD and backlight (BL). The connection method adopts PITCH 0.8×21PIN welding, and the backlight circuit uses 2 LEDs with a forward current (If) of 30mA and a forward voltage (Vf) of 2V.

Key Features & Highlights

The architecture of this display module is fundamentally designed to maximize both functional efficiency and aesthetic integration for high-end equipment. By focusing on the core necessities of industrial and commercial applications, it strips away unnecessary complexities while reinforcing the components that matter most to long-term performance and user interaction.

• Optimized Visual Ergonomics: The specific wavelength of the orange backlight is calibrated to provide high visibility while maintaining a soothing effect on the eyes during prolonged monitoring tasks.

• Structural Integrity: The combination of the LCD glass and the securely bonded backlight unit creates a rigid structure capable of withstanding the micro-vibrations commonly found in heavy machinery.

• Space-Saving Footprint: With an overall thickness of just 3.0mm, it allows hardware designers to allocate more internal volume to larger batteries or additional processing units.

• Consistent Illumination: The dual-LED backlight circuit is engineered for uniform light distribution, eliminating dark spots and ensuring that every pixel in the 40.0mm x 22.0mm viewing area is perfectly illuminated.

Display Performance & Clarity

Visual clarity is the most critical metric for any interface, and this module excels by utilizing the highly regarded 128x64 golden ratio resolution. This specific dot-matrix configuration provides the perfect canvas for rendering crisp, legible text across multiple lines, alongside intricate real-time data and setting menus. Whether an operator is glancing at a machine's status from a distance or closely analyzing a simple waveform on a testing instrument, the visual output remains impeccably sharp.

• FSTN Superiority: The Film-compensated Super-Twisted Nematic technology drastically improves the viewing angle and contrast compared to standard TN displays, ensuring data is readable from various operator stances.

• Positive Transmissive Mode: By allowing backlight to pass through the pixels while maintaining dark characters on a bright orange background, it guarantees excellent readability in completely dark rooms or under intense overhead factory lighting.

• Information Density: The 128x64 grid offers enough pixel real estate to display complex Chinese characters, English typography, and custom UI elements simultaneously without feeling cluttered.

Industrial-Grade Reliability & Durability

Equipment deployed in the field faces unpredictable extremes, from the freezing temperatures of outdoor monitoring stations to the sweltering heat of manufacturing floors. This module is fortified to operate flawlessly across a staggering temperature range of -30℃ to 70℃. Furthermore, by utilizing mature LCD technology that is entirely free from the organic material degradation issues found in newer display types, it secures a phenomenal operational lifespan of 10 to 15 years.

• Thermal Resilience: The liquid crystal fluid is specially formulated to prevent freezing or boiling within the specified wide temperature threshold, maintaining consistent pixel response times.

• Electromagnetic Immunity: Designed to function in environments saturated with electromagnetic interference, such as control rooms filled with heavy transformers and high-voltage cabling.

• Zero Burn-In Risk: Unlike emissive displays, this screen can hold static menus and fixed parameters 24/7 for years without any risk of permanent image retention or screen burn-in.

• Low-Maintenance Architecture: The robust build quality significantly reduces the need for field replacements, drastically lowering the total cost of ownership for the final equipment.

Ease of Integration & Development

Engineering time is a critical resource in any product development cycle. This display module is specifically engineered to accelerate the time-to-market for new devices by minimizing integration hurdles. At its core lies the highly reliable ST7567 driver IC, a mature component renowned in the engineering community for its straightforward logic and highly efficient communication protocols. This allows developers to focus on higher-level application features rather than struggling with complex display driving codes.

• Versatile Interface Options: By supporting both 8080 parallel and 4-wire SPI (4L_SPI) interfaces, it easily handshakes with a vast array of microcontrollers (MCUs), from legacy systems to modern low-power ARM chips.

• Streamlined Coding: The integrated RAM and power circuits within the ST7567 chip mean that the main control unit requires only a minimal footprint of code to initialize and push data to the screen.

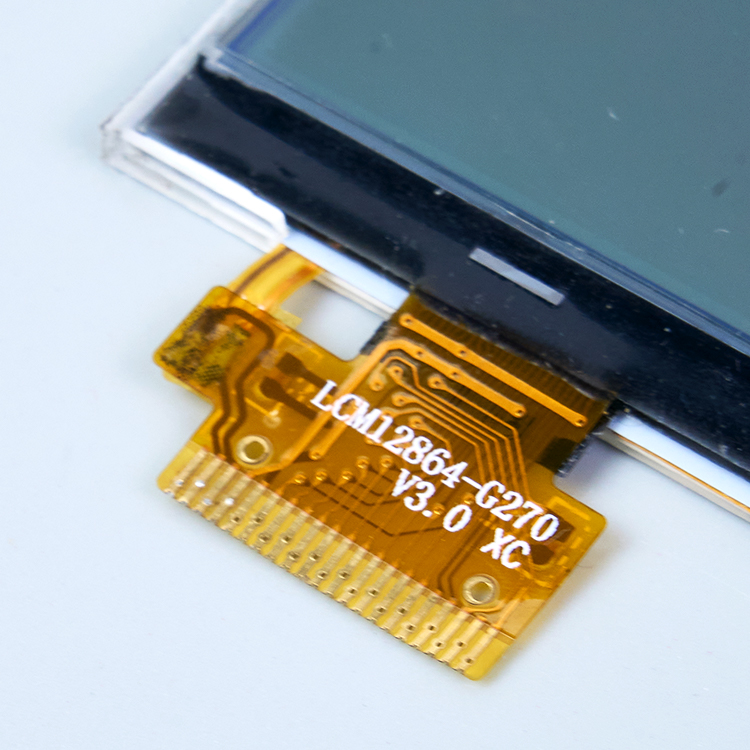

• Physical Connection Stability: The PITCH 0.8 × 21PIN welding method provides a permanent, vibration-resistant connection to the mainboard, eliminating the intermittent signal drops associated with flimsy zero-insertion-force connectors.

Ultra-Low Power Consumption

For modern portable and handheld devices, battery reliance demands exceptionally strict energy budgets. This display module is a masterclass in power efficiency, consuming only a fraction of the energy required by standard color TFT screens. Operating on a lean 3.3V power supply, it allows engineers to design devices with smaller, lighter battery packs while simultaneously extending the operational time between charges. This is an absolute necessity for critical field equipment.

• Optimized Backlight Draw: The dual-LED circuit operates efficiently at a forward current of just 30mA and a forward voltage of 2V, providing brilliant illumination without draining the power reserves.

• Medical Device Compatibility: Perfectly suited for portable healthcare instruments like blood glucose meters and pulse oximeters, where users expect months of standby time from a single set of batteries.

• Efficient Logic Power: The ST7567 IC is designed to manage its internal operations with minimal current leakage, ensuring that the display logic itself barely registers on the device's overall power consumption profile.

Customization Flexibility

Standardized segmented displays often force hardware designers into rigid, uninspiring interface layouts. The dot-matrix nature of this 128x64 module shatters those limitations, offering a blank canvas for complete graphical freedom. Procurement specialists and product managers can leverage this flexibility to elevate the perceived value of their equipment, transforming a generic tool into a branded, highly professional instrument that resonates with end-users.

• Brand Identity Integration: Developers can easily map out and display intricate company logos during the device boot sequence, reinforcing brand presence every time the machine is powered on.

• Intuitive UI Design: The resolution allows for the creation of custom typography, specific industrial icons, and dynamic progress bars that guide operators through complex workflows seamlessly.

• Localization Capabilities: The matrix can render diverse character sets, enabling manufacturers to export the exact same hardware globally by simply updating the software to display different languages.

Versatile Application Scenarios

The true strength of this LCD module lies in its chameleon-like ability to adapt to a vast multitude of professional environments. Its unique combination of high visibility, ruggedness, and low power draw makes it the go-to visual interface for engineers across entirely different sectors. It acts as the reliable face of the machine, regardless of whether that machine is sitting on a laboratory bench, mounted inside a vehicle dashboard, or carried in a technician's toolbelt.

• Industrial Automation: Serves flawlessly as the status display for PLC controllers, frequency converters, and CNC machine tool operation panels where data accuracy is non-negotiable.

• Automotive Electronics: Withstands the intense temperature fluctuations inside vehicle cabins, making it ideal for OBD diagnostic tools, TPMS displays, and aftermarket audio information screens.

• Smart Home Appliances: Elevates the aesthetic of high-end consumer goods like smart thermostats, air purifiers, and automated coffee machines by providing a clean, modern interface.

• Professional Instrumentation: Meets the rigorous demands of scientific research tools, network routers, and electronic scales where focused, glare-free data presentation is required.

Cost-Effectiveness & Supply Stability

Balancing premium technical features with strict procurement budgets is a constant challenge for large-scale manufacturing. This display offers an elegant solution by providing sophisticated graphic and text rendering capabilities at a fraction of the cost of full-color alternatives. By integrating this module, organizations can significantly elevate the user experience and perceived quality of their hardware while maintaining strict control over the total Bill of Materials (BOM).

• Smart Resource Allocation: The cost savings achieved by utilizing this monochrome matrix instead of an over-specced color screen can be redirected into improving the device's core sensors or processing power.

• Long-Term Availability: Built on highly mature manufacturing processes, this module guarantees long-term supply chain stability, protecting volume production runs from unexpected component obsolescence.

• Reduced Support Costs: The inherent reliability and 10 to 15-year lifespan mean fewer warranty claims, fewer field repairs, and a significantly lower total cost of ownership for the enterprise.

 Industrial Control & HMI

This is its most classic and widely used field.

Application scenarios: CNC machine tool operation panel, PLC controller status display, frequency converter panel, testing and measuring instruments (such as oscilloscopes, multimeters), smart meters/water meters/gas meters, auxiliary display of industrial touch screens.

Reason for selection:

High reliability: Wide temperature characteristics (usually -20 ℃~+70 ℃) suitable for harsh industrial environments.

Rich information display: 128x64 resolution is sufficient to display multiple lines of parameters, real-time data, simple waveforms, setting menus, and alarm information.

Cost controllable: Under the premise of meeting functional requirements, the cost is much lower than that of color TFT screens.

 Portable Medical Devices

Application scenarios: blood glucose meter, electronic blood pressure monitor, blood oxygen saturation monitor, portable electrocardiogram (ECG) machine, infusion pump display interface.

Reason for selection:

Extremely low power consumption: greatly extends the battery life of battery powered devices, which is a key indicator of medical equipment.

Clear display: able to clearly display physiological parameters, measurement results, waveforms, and operating instructions.

Strong stability: meets the stringent requirements of medical equipment for stability and reliability.

 Automotive Electronics

Application scenarios: In car diagnostic device (OBD), reverse radar display, car audio information screen, on-board computer display, tire pressure monitoring system (TPMS) display terminal.

Reason for selection:

Environmental adaptability: able to withstand wide temperature changes and electromagnetic interference inside the car.

Wide viewing angle: Clear and easy to read from the driver's perspective.

Practical Function: Perfectly adapted to display vehicle data, diagnostic information, audio lists, and other needs.

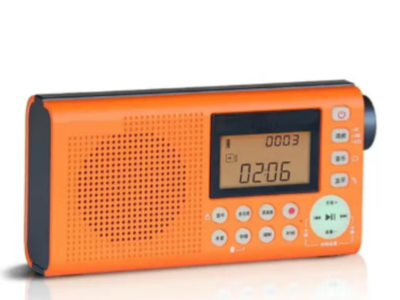

 Smart Home & Consumer Electronics

Application scenarios: smart thermostat, air purifier control panel, advanced remote control, coffee machine, washing machine status screen, fitness equipment (such as treadmill) dashboard.

Reason for selection:

Good user experience: It can provide a more user-friendly and flexible graphical interface than a segmented screen.

High cost-effectiveness: While enhancing the sense of grade for household appliances, it effectively controls the overall cost of the machine.

Simple interface: SPI interface facilitates connection with various main control chips.

 Instrumentation & Professional Equipment

Application scenarios: Communication testing equipment, network switch/router status screens, scientific research instruments, electronic scales, security alarm panels.

Reason for selection:

Strong sense of professionalism: Single color screen displays data with focus and non glare, suitable for professional occasions.

Customization flexibility: You can freely define display content, draw logos, and customize icons.

Long lifespan: No risk of screen burn-in, suitable for devices that require long-term or even year-round power on operation.

Is this LCD matrix semi-transparent?

Yes, it adopts a positive, semi-transparent display mode, which is suitable for scenarios where both clarity and light transmission are required.

Can it display simple waveforms, which are needed for industrial testing instruments?

Yes, the 128x64 resolution provides sufficient space to display simple waveforms, making it suitable for use in testing and measuring instruments like oscilloscopes.

What is the service life of this LCD matrix, and can it meet the long-term use needs of industrial equipment?

Thanks to LCD technology (no organic material aging), its service life is extremely long, usually meeting the 10-15 year use requirements of industrial equipment.

Does it support customization of display content, such as brand logos or specific icons for industrial equipment?

Yes, it offers customization flexibility. Users can freely define display content, draw brand logos, and customize icons to match the specific needs of industrial equipment.
