1. Feature Description:
Electrical and Interface Characteristics
Driver IC: SC5037-G4-1, an automotive-grade driver chip capable of operation within the stringent temperature range of -40°C to 85°C.
Low Voltage, Low Power Consumption: The SC5037-G4-1 module operates at 2.8V to 3.3V logic levels with minimal power consumption, making it highly suitable for battery-powered portable devices.
Interface Options: The SC5037-G4-1 supports multiple interfaces, including 4L-SPI/3L-SPI serial communication or 8080 parallel port transmission. The SPI interface simplifies control logic and ensures high compatibility for embedded integration.
COG Packaging: Utilising COG (Chip on Glass) packaging technology is one of its key features. The driver IC is directly bonded onto the LCD glass substrate, resulting in a thinner, lighter module with more reliable connections and enhanced immunity to interference.
Structure and Mechanical Characteristics
Wide Temperature Operation: This module typically supports an operating temperature range of -35°C to +85°C.
Robust Durability: The COG packaging process and mature liquid crystal technology provide high reliability, enabling adaptation to the vibration and prolonged operation demands of numerous industrial environments.
| | | |
2.Performance Specifications:
Wide operating temperature range: This product supports -35°C to +85°C, ensuring stable and reliable operation.
Automotive-grade design ensures extended lifespan and high stability.

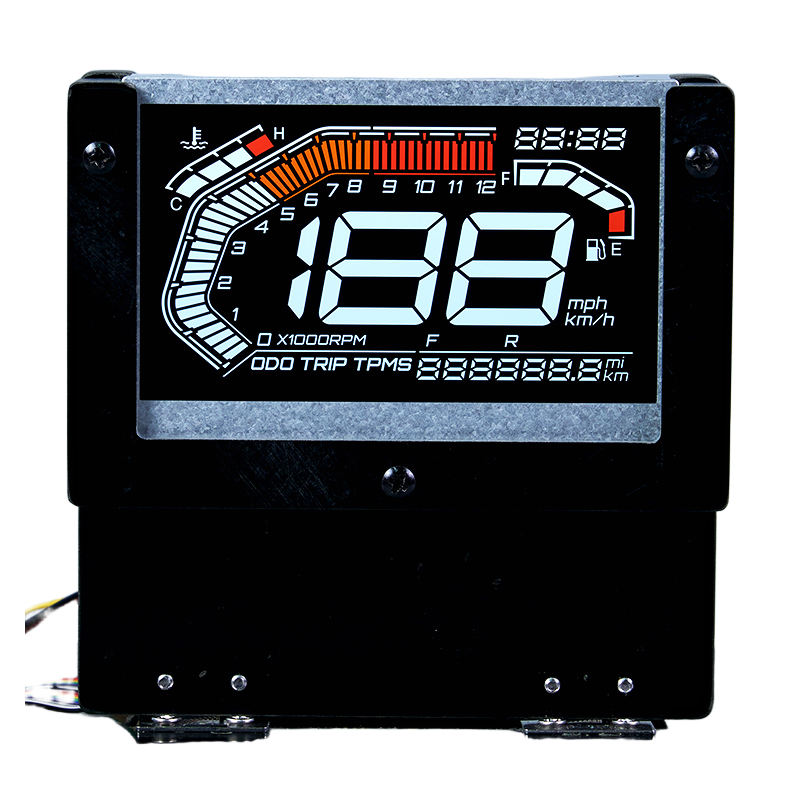

Display Technology and Performance: The SC5037-G4-1 drives a monochrome segment display. Utilising a backlight twisted nematic (BTN) LCD technology negative display, it delivers high contrast, guaranteeing optimal readability in both bright and low-light conditions. The 6 o'clock viewing angle design ensures clear visibility at low angles (suitable for automotive instrument panels and low-mounted equipment). The polariser utilises UV-resistant film, making it suitable for outdoor use and enabling clear content visibility even under direct sunlight. High-speed response LCD enables rapid content switching. Combined with colour silk-screen printing, it can display richer colour content.
Interface Options:
SPI Interface: Offers faster communication speeds, suitable for scenarios requiring rapid refresh rates.
Power Management & Low Power Consumption: The SC5037-G4-1's ultra-low power consumption is a core advantage. Its integrated charge pump and voltage regulator enable operation from a single power supply (e.g., 3.3V), eliminating the need for complex external power circuits.
Software-Adjustable Contrast: Display contrast can be adjusted via software commands, eliminating the need for external potentiometers and simplifying hardware design and production debugging.
COG Packaging Advantages: The COG (Chip on Glass) process bonds the driver IC directly onto the LCD glass substrate. This results in a thinner, lighter module with more reliable connections, enhanced resistance to vibration and interference, and higher integration.
