LCD and LCM are two common terms used in the display industry. Because they are closely related, they are sometimes used interchangeably. However, LCD and LCM usually refer to different parts or levels of a display solution.
In simple terms, an LCD is the display panel or liquid crystal display technology itself, while an LCM is a more complete display module that integrates an LCD panel with additional electronic and mechanical components. Understanding the difference can help product designers, engineers, and purchasing teams select the right display solution for their applications.
Table of Contents
LCD stands for Liquid Crystal Display. It is a display technology that uses liquid crystal molecules to control the passage of light and create visible images, numbers, characters, or symbols.
An LCD itself generally refers to the display panel or the liquid crystal display element. Depending on the design, an LCD can be used to show:
Numbers and basic symbols
Alphanumeric characters
Icons and custom segments
Graphic patterns
Monochrome information
Color images in more advanced display systems
For example, segment LCDs are often used for meters, household appliances, and control panels. Character LCDs are designed to display letters, numbers, and fixed text formats. Graphic LCDs can display customized images, icons, and graphical information.
Jinrun provides different types of LCD products, including segment, character, graphic, COG, and COB display solutions for industrial control, medical equipment, automotive electronics, smart home products, and other applications.
An LCD panel may be customized according to display size, viewing direction, contrast, display content, operating temperature, and other project requirements. However, the panel alone may not include all the components needed for direct system integration.
LCM stands for Liquid Crystal Module. An LCM is an integrated display assembly that normally includes an LCD panel and other supporting components.
Depending on the design, an LCM may include:
LCD glass or display panel
Driver IC
Printed circuit board or flexible circuit
Backlight system
Connector or interface
Frame or mechanical support
Control components
Protective cover or other structural parts
Since these components are assembled together, an LCM can be easier to install and connect to an electronic system than a standalone LCD panel.

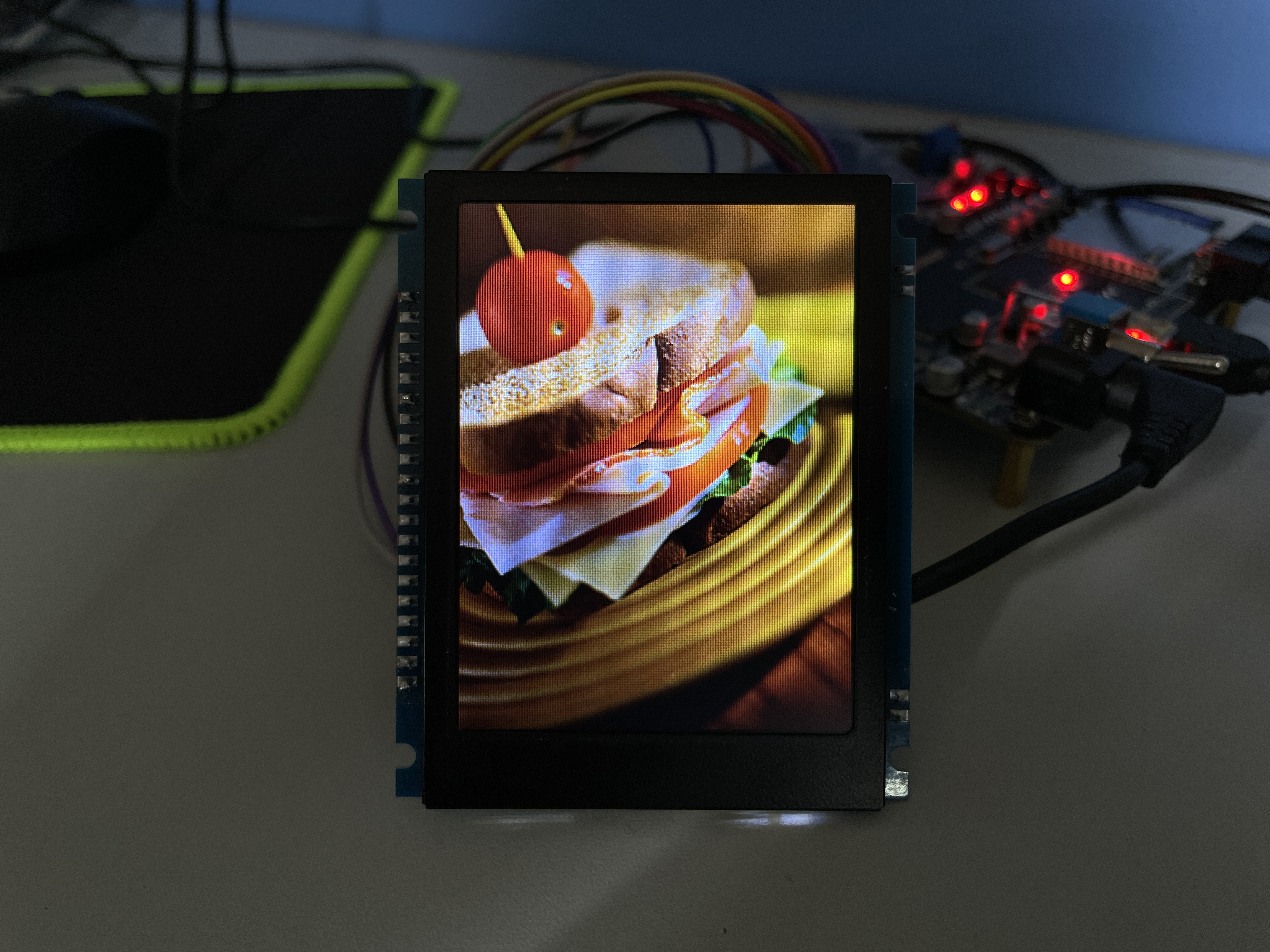

LCMs are available in different formats, including monochrome LCMs, character LCMs, graphic LCMs, COG LCMs, COB LCMs, and TFT LCMs. The specific structure depends on the display requirements, available installation space, interface type, and application environment.
Jinrun’s LCM product range includes monochrome display modules based on technologies such as TN, HTN, STN, FSTN, VA, and DFSTN. These modules can be used in industrial meters, smart controllers, home appliances, electric vehicles, medical instruments, and other equipment.
The main difference between LCD and LCM is the level of integration.
An LCD generally refers to the display panel or liquid crystal display component. An LCM is a complete or semi-complete display module that combines the LCD panel with electronic, optical, and mechanical components.
Comparison Item | LCD | LCM |
|---|---|---|
Meaning | Liquid Crystal Display | Liquid Crystal Module |
Main function | Provides the display panel or liquid crystal element | Provides an integrated display solution |
Components | Primarily LCD glass or panel | LCD panel, driver IC, backlight, PCB or FPC, connector, and other parts |
Integration | Requires additional components and engineering work | More convenient for direct system integration |
Design flexibility | Suitable for highly customized display structures | Suitable for projects requiring an assembled module |
Typical use | Custom display panels and components | Control panels, meters, instruments, appliances, and embedded systems |
Purchasing focus | Panel specifications and display characteristics | Overall module specifications and interface compatibility |
Neither LCD nor LCM is automatically better than the other. The correct choice depends on the product structure, development stage, available engineering resources, production volume, and integration requirements.
The LCD panel is responsible for producing the visible display. It controls light transmission through liquid crystal layers to present the required information.
When purchasing an LCD panel, engineers may need to consider:
Display area
Overall dimensions
Number of segments or pixels
Display type
Viewing angle
Contrast ratio
Operating temperature
Display mode
Glass thickness
Connector or electrode design
A standalone LCD may provide greater freedom for customers who want to design their own driver circuit, backlight system, mechanical structure, or control board.

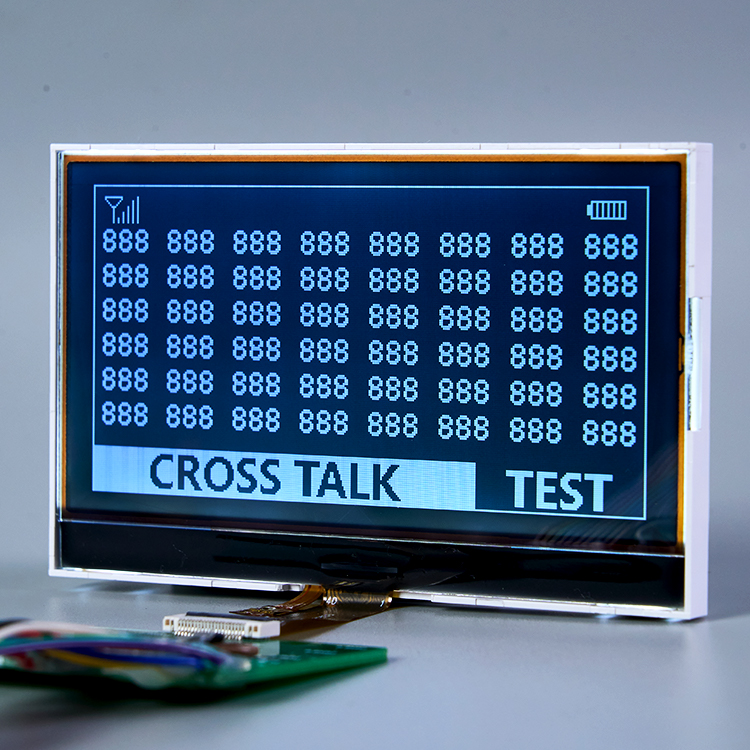

An LCM combines the LCD panel with supporting components so that it can work as a more complete display assembly.
For example, an LCM may include a driver IC that controls the display signals, a backlight that improves visibility, and a connector that allows the module to communicate with the main control board. A protective frame can also help support installation and improve mechanical stability.
The exact configuration is not fixed. Some LCMs may be designed for low-power monochrome applications, while others may include a backlight, touch function, higher resolution, or a more advanced communication interface.
Not always. Whether an LCM includes a backlight depends on the display type and application requirements.
Many monochrome LCD modules can be designed as reflective, transmissive, or transflective displays. Reflective displays use ambient light and may not require a backlight. Transmissive displays generally use a backlight to improve visibility. Transflective displays can work with both ambient light and backlight illumination.
When selecting an LCM, buyers should confirm:
Whether a backlight is included
Backlight color
Backlight power consumption
Brightness requirements
Viewing environment
Daylight and low-light visibility
These details can affect the module’s power consumption, thickness, cost, and overall performance.
LCD panels and LCMs are used in many of the same industries, but they may serve different roles within a product.
LCDs and LCMs are widely used in power meters, temperature controllers, automation equipment, testing instruments, and industrial control panels.
For simple numeric or status displays, a segment LCD or character display may be sufficient. For applications that require more detailed information, a graphic LCD or graphic LCM may be more suitable.
Medical instruments often require clear, stable, and reliable displays. LCD panels and LCMs can be used in monitoring equipment, diagnostic devices, patient-care equipment, and laboratory instruments.
The selection may depend on contrast, viewing angle, operating temperature, display format, and long-term reliability.

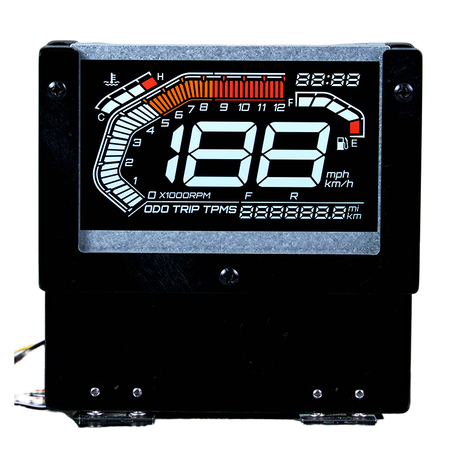

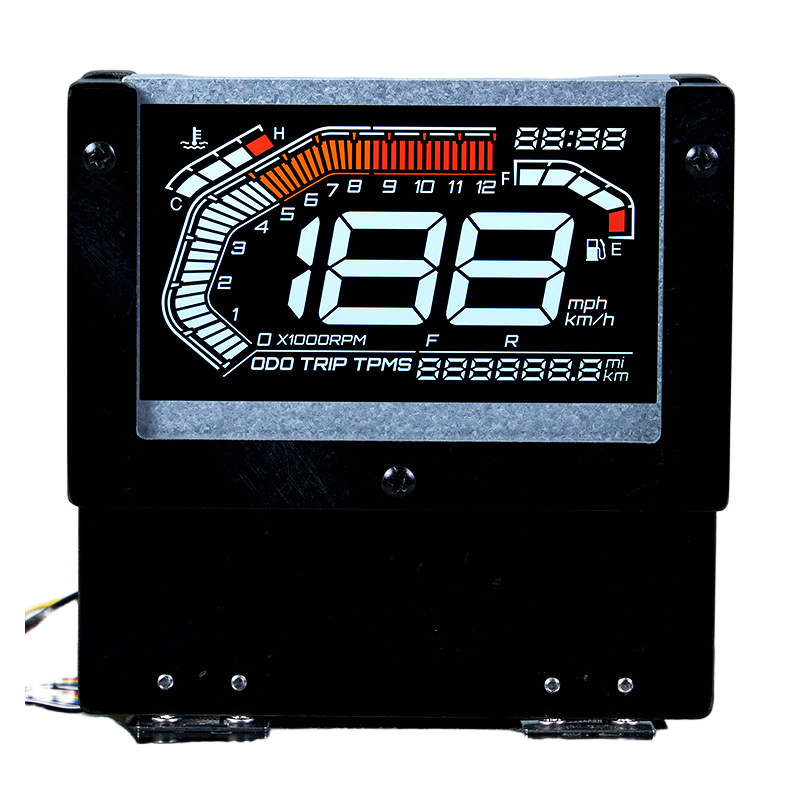

Automotive displays may be used in dashboards, control panels, charging equipment, and auxiliary systems. These applications often require a customized outline, stable operation, suitable viewing direction, and resistance to temperature changes.
Depending on the product design, the manufacturer may supply either a customized LCD panel or a more integrated LCM.
LCDs and LCMs are also used in thermostats, heating systems, washing machines, refrigerators, meters, and smart controllers.
Segment and character displays are often selected for simple information, while graphic or TFT modules can support more flexible user interfaces.
The choice between an LCD and an LCM should be based on the actual technical and production requirements of the project.
You already have an in-house driver circuit design
Your engineering team needs full control over the display structure
You require a highly customized panel
You plan to design the backlight and control board separately
The product requires a special outline or display pattern
You have sufficient time and resources for integration and testing
You need a more complete display assembly
You want to simplify system integration
The project requires a driver IC or standard interface
You prefer to reduce additional circuit design work
You need a display module for rapid product development
The module must fit a defined mechanical installation space
Before placing an order, it is important to confirm the complete specification, including display type, dimensions, viewing angle, contrast, drive voltage, interface, backlight, operating temperature, connector position, and installation method.
For customized projects, the manufacturer may also need application drawings, display content, operating conditions, estimated order quantity, and sample requirements.
No. LCD generally refers to the liquid crystal display panel or display technology, while LCM refers to a liquid crystal module that integrates the LCD with additional electronic and mechanical components. However, suppliers may sometimes use the terms together because an LCM contains an LCD panel.
An LCM is generally easier to integrate because it may already include components such as a driver IC, backlight, connector, and supporting structure. A standalone LCD usually requires additional circuit and mechanical design work.
Yes. LCD panels can be customized in terms of size, display content, segment layout, viewing direction, contrast, glass design, and other specifications. The available options depend on the manufacturer’s engineering and production capabilities.
Yes. LCM customization may include the display dimensions, interface, driver method, backlight, viewing direction, connector position, drive voltage, display content, and mechanical structure.
Start by defining the required display information, installation space, operating environment, power conditions, interface, viewing requirements, and expected production volume. A professional LCD and LCM manufacturer can then recommend a suitable panel or integrated module based on these requirements.
LCD and LCM are closely related but are not exactly the same. An LCD mainly refers to the liquid crystal display panel or display element, while an LCM is an integrated module that combines the LCD with components such as a driver IC, backlight, connector, and supporting structure.
An LCD may provide more freedom for customers who want to develop their own display system. An LCM may simplify integration and shorten the development process by providing a more complete display assembly. The most suitable option depends on the product design, technical requirements, production plan, and level of customization needed.
By clearly defining the display specifications and integration requirements at the beginning of a project, buyers and engineers can work more efficiently with an experienced LCD and LCM manufacturer to develop a reliable display solution.
