Modern hardware design faces a constant struggle. Engineers must balance device miniaturization against clear display readability and component expenses. Shrinking a product footprint often forces tough compromises on user interface quality. Traditional display packaging takes up valuable internal real estate, complicating elegant industrial designs.

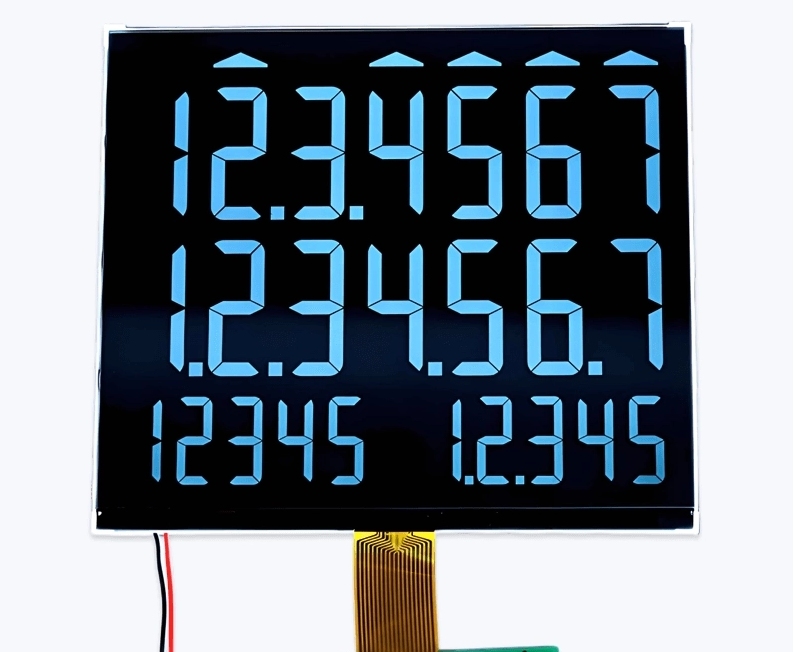

A COG LCD Module (Chip-on-Glass) emerges as a standard solution for space-constrained applications. You will find them powering sleek wearables, precise medical instrumentation, and compact industrial panels. They eliminate bulky external driver boards to save precious internal space. This technology mounts the driver directly to the glass substrate.
This guide moves beyond basic definitions to provide a comprehensive technical evaluation framework. We will help you determine if this specific display architecture fits your exact project requirements. You will learn the mechanical trade-offs, integration risks, and specification criteria needed for successful deployment.
Definition: A COG LCD module mounts the display controller (IC) directly onto the glass substrate, eliminating the need for an external PCB for the driver.
Core Advantage: Radically reduces the Z-height (thickness) and footprint of the display assembly while minimizing weight.
Primary Trade-off: Requires precise handling during assembly due to exposed glass edges and integrated FPC (Flexible Printed Circuit) bonding.
Decision Pivot: Highly cost-effective for medium-to-high volume production, though custom designs may incur initial NRE (Non-Recurring Engineering) tooling costs.
Understanding the physical stack is crucial for integrating these displays into your hardware. The architecture relies on precision manufacturing to bond microscopic components. Let us break down the physical layers comprising this technology.
The foundation is the glass substrate. Manufacturers etch Indium Tin Oxide (ITO) traces directly onto this glass. These transparent conductive pathways route electrical signals to the display pixels. Next, the display controller IC sits directly on the glass. Factories use Anisotropic Conductive Film (ACF) to bond the IC to the ITO traces. ACF contains microscopic conductive spheres trapped inside a heat-curing adhesive. Applying heat and pressure creates a reliable electrical connection strictly in the vertical direction.
Finally, a Flexible Printed Circuit (FPC) tail connects the display assembly to your main board. This FPC also utilizes ACF bonding at the glass edge. The entire stack remains incredibly thin.
This architecture solves a massive business problem for hardware teams. Traditional displays require bulky external housings for drivers. A standard LCD Module using older packaging techniques includes an integrated printed circuit board. COG eliminates this PCB entirely. It directly addresses the engineering demand for ultra-thin form factors. Devices look sleeker. Internal cavity space opens up for larger batteries or additional sensors.
While many standard configurations exist, the architecture supports extensive customization. You can specify exact viewing areas. You can also customize the FPC interface routing to match your mainboard connector placement. Standard modules offer fast time-to-market. Custom designs provide the perfect fit for unique enclosures.
Engineers often weigh COG against traditional Chip-on-Board (COB) technology. Choosing the right packaging determines your mechanical design parameters and unit economics.
The structural differences define their distinct applications. COG places the IC directly on the glass and connects via an FPC. This creates a remarkably thinner and lighter profile. Conversely, COB wire-bonds the IC to a rigid PCB. Factories then attach this PCB to the back of the glass substrate. This approach results in a thicker, bulkier assembly. The PCB acts as a robust backbone but consumes significant Z-height.
Volume economics heavily influence this decision. COB often proves cheaper for low-volume legacy projects. It utilizes standardized, older manufacturing lines. However, COG becomes far more cost-efficient at scale. Automated manufacturing processes handle ACF bonding rapidly. The design also removes the raw material costs of the fiberglass PCB and rigid metal bezels.
Mechanical robustness also differs significantly. COB offers higher rigidity against blunt impact. The rigid PCB backing absorbs physical stress effectively. COG requires more thoughtful enclosure design. You must protect the exposed glass edges. Drop shocks can fracture unshielded COG modules. They demand proper bezel support and internal cushioning.
Technical Comparison Between COG and COB Architectures
Evaluation Criteria | COG (Chip-on-Glass) | COB (Chip-on-Board) |
|---|---|---|
Typical Thickness | Sub-3mm (Ultra-thin) | 8mm - 12mm (Bulky) |
Weight Profile | Extremely lightweight | Heavier (due to PCB) |
Impact Resistance | Lower (requires shock absorption) | Higher (rigid PCB backing) |
Volume Production Cost | Highly efficient and economical | Higher per-unit material cost |
Initial Tooling (Custom) | Higher NRE for custom FPC/Glass | Lower NRE for standard PCB edits |
Selecting a COG LCD Module requires analyzing specific performance dimensions. You must align these capabilities with your product outcomes.
Form factor and weight stand as the primary features driving adoption. The absence of a PCB yields a sub-3mm thickness. This characteristic directly enables sleek product designs. Smart thermostats sit flush against walls. Portable medical devices remain lightweight for easy transport. Wearables maintain a slim profile on the wrist. You cannot achieve these ergonomics with bulky legacy screens.
Power consumption generally remains lower in these modules. Shorter trace routing between the IC and the display matrix minimizes parasitic capacitance. Less energy escapes as heat. The controller IC operates highly efficiently. This efficiency extends battery life in portable electronics.
Display quality depends on your underlying fluid choice. COG technology applies across various liquid crystal types. You can specify TN (Twisted Nematic) for basic, cost-effective applications. You can upgrade to STN (Super Twisted Nematic) for better contrast. FSTN (Film Compensated STN) offers the best monochrome viewing angles. The packaging does not limit your optical performance. Contrast and viewing angles depend entirely on the chosen fluid.
We must also apply a skeptic’s lens to the trade-offs. The FPC connection point represents a fragile physical link. Bending the FPC too close to the glass bond can tear the ACF connection. Furthermore, these bare modules lack integrated structural housing. Accurate backlight integration becomes your responsibility. You must source a backlight separately or specify it as a pre-assembled module from the manufacturer. Poor backlight alignment causes light bleeding and uneven illumination.
Designing a schematic is easy. Surviving mass production and real-world usage is difficult. You must mitigate several integration risks early in the design phase.
Mechanical stress vulnerabilities pose the greatest threat to field reliability. Glass fractures easily if the device enclosure lacks proper shock absorption. You cannot mount a bare glass module rigidly against a hard plastic case. Engineers must design internal bezels with precise tolerances. We recommend using compressible Poron gaskets. These materials absorb drop impacts and prevent stress concentrations on the glass corners.
FPC bonding risks require careful assembly planning. The ACF bond holding the FPC to the glass works perfectly under static conditions. However, extreme thermal cycling can degrade this bond. Mismatched thermal expansion coefficients between glass and flexible plastic cause micro-tearing. Additionally, mechanical tension during manual assembly causes immediate failure. Assembly line workers must never use the FPC tail as a handle to lift the display.
Temperature constraints dictate application suitability. A standard module provides realistic operating temperature ranges between -20°C and +70°C. Storage temperatures might extend slightly further. Extreme industrial environments require specialized fluids. Deploying a standard module in freezing outdoor conditions will cause the liquid crystal to become sluggish. High heat will wash out the contrast completely. Always verify environmental requirements before specifying the module.
Manufacturing rollout demands strict ESD (Electrostatic Discharge) protocols. The display controller IC sits bare on the glass surface. It lacks the protective epoxy potting found in COB designs. An electrostatic shock during handling will destroy the IC instantly. Your assembly line must enforce grounding straps, ionizers, and static-dissipative matting.
Narrowing down thousands of display options requires a methodical approach. Follow this specification framework to shortlist the perfect module for your hardware.
Interface Requirements: Match the project’s MCU capabilities with common IC interfaces. Most modules support I2C, SPI, or parallel interfaces. I2C saves pin count but runs slower. SPI offers a great balance of speed and low pin count. Parallel interfaces provide high data rates but consume many GPIO pins. Verify your microcontroller can drive the selected interface efficiently.
Backlight & Illumination: Decide your lighting configuration based on ambient environments. Reflective displays need no backlight. They rely on high ambient light and consume minimal power. Transmissive displays require a constant backlight to remain visible. Transflective configurations offer a hybrid approach. They reflect sunlight outdoors but use a backlight in dark rooms.
NRE Tooling vs. Off-the-Shelf: Evaluate the breakeven point for custom tooling. Modifying a standard module carries lower upfront costs. It works well for rapid prototyping. However, tooling a custom glass and FPC layout ensures exact enclosure fits. Calculate your projected production volume. High volumes justify the NRE tooling costs to optimize the mechanical assembly.
Vetting Supply Chain Partners: Audit your display manufacturers thoroughly. Look for transparency on the IC lifecycle. Ensure the controller chip will not face obsolescence next year. Ask for ACF bonding yield rates to gauge their manufacturing quality. Discuss Minimum Order Quantity (MOQ) thresholds upfront. Secure long-term availability guarantees to protect your product lifespan.
Applying this framework prevents costly redesigns late in the development cycle. It aligns your mechanical engineers, firmware developers, and purchasing managers.
A COG display architecture provides the ultimate solution for compact device engineering. It radically reduces device thickness by eliminating rigid external driver boards. It delivers exceptional power efficiency through direct on-glass integration. This technology stands as the optimal choice for volume products requiring a minimized footprint and low weight.
However, successful deployment relies entirely on robust mechanical integration. You must design enclosures that cushion the glass and protect the delicate FPC bonds from tension.
Begin your selection process by auditing your specific Z-height constraints. Map out your microcontroller interface capabilities. Determine your exact environmental operating temperatures. Once you lock in these parameters, reach out to manufacturers for technical datasheets. Request standard sample kits to test the optical quality in your target environment. Taking these measured steps ensures a seamless hardware launch.
A: No. Due to the precise microscopic ACF bonding and direct glass integration, these displays cannot be repaired. If the glass cracks or the IC fails, you must treat the entire assembly as a consumable module. You replace the broken unit entirely rather than attempting board-level repairs.
A: Tooling costs vary widely based on customization depth. Customizing only the FPC tail typically costs between $500 and $1,500. Creating a fully custom glass substrate with bespoke viewing areas can range from $2,000 to $5,000. Pin count, fluid type, and specialized backlights influence this final NRE pricing.
A: It depends on your specification. Reflective modules do not use backlights, relying entirely on ambient light. Transmissive and transflective modules do require a backlight. You can purchase them as bare glass to integrate your own lighting, or buy them as pre-assembled modules with an integrated LED backlight.
A: Yes, but it requires specific optical treatments. Prolonged sunlight exposure causes UV degradation in standard liquid crystals and polarizers. For outdoor usage, you must specify UV-blocking polarizers. You should also select a transflective fluid type to ensure the screen remains readable under direct, harsh sunlight.
