Engineers face a constant dilemma when designing user interfaces. They must balance modern user expectations against strict hardware constraints. Key limitations include budget ceilings, battery life targets, and processing power limits. Smart product design requires finding the exact sweet spot.
You might wonder if one display technology reigns supreme. In reality, neither display type is universally better. The right choice depends entirely on your specific application. Target bill of materials (BOM) cost and the intended operating environment also play massive roles in this decision.
This guide provides a realistic, engineering-focused evaluation framework. We will help buyers and product managers confidently choose between these two core display types. Read on to discover how to align your hardware capabilities with the ideal screen technology.
Power & Simplicity: Segment LCDs are unmatched for ultra-low power consumption and high-contrast, sunlight-readable applications.
Flexibility & UX: Graphic LCDs provide dynamic, pixel-level control necessary for multi-language menus, custom fonts, and complex data visualization.
Cost Dynamics: Segment displays offer the lowest per-unit cost at high volumes, while Graphic displays eliminate custom glass tooling fees (NRE) for off-the-shelf prototyping.
System Architecture: Graphic displays require significantly more MCU overhead (RAM/Flash and processing power) compared to the simple driving logic of Segment LCDs.
Understanding display fundamentals begins at the architectural level. Different manufacturing processes dictate how a screen presents information. We must explore the physical construction of both options to grasp their respective limitations.

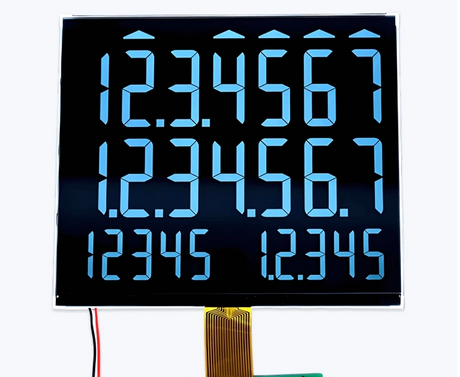

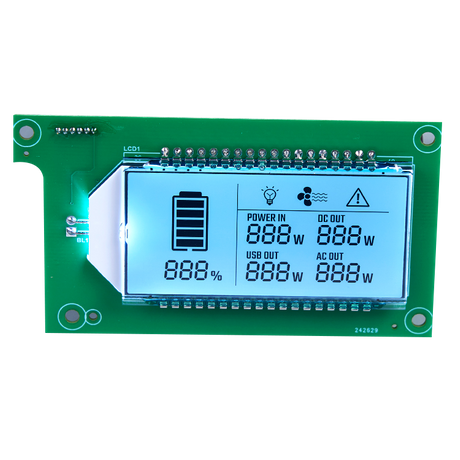

A Segment LCD relies on a highly specific, pre-determined architecture. Manufacturers etch fixed electrodes directly onto the Indium Tin Oxide (ITO) glass during production. These etched areas form specific shapes. Common examples include traditional 7-segment numbers, battery life indicators, or custom brand logos. When voltage applies to a specific pin, the corresponding liquid crystal area darkens or becomes transparent.
This fixed nature defines the display's primary constraint. Once manufactured, the layout cannot change via software updates. You cannot suddenly display a Bluetooth icon if the glass lacks a physically etched Bluetooth symbol. The interface remains static for the lifetime of the product. This structural simplicity reduces manufacturing complexity significantly. It also eliminates the need for complex pixel-mapping algorithms. The display simply turns pre-defined shapes on or off.
A Graphic LCD operates on a completely different paradigm. The architecture features a dense grid of individually controllable pixels. These displays come in both monochrome and full-color RGB variants. Instead of turning on entire pre-drawn icons, the system illuminates specific dots to form any desired shape or character.
This pixel-level control requires robust supporting hardware. A dot-matrix display needs a dedicated display controller. It also requires a frame buffer. The frame buffer is a section of memory storing the exact pixel state for the current image. The microcontroller maps software instructions to specific X and Y coordinates. It then pushes this data to the display controller. This complex interaction allows infinite flexibility, but it introduces heavy data processing requirements.
Choosing the right display involves navigating several competing design dimensions. Engineers must evaluate costs, power demands, computing requirements, and environmental durability. A failure to assess any of these pillars can derail a product launch.
Financial considerations often dictate hardware decisions. Custom segment displays require upfront tooling fees, known as Non-Recurring Engineering (NRE) costs. Manufacturers charge these fees to create the custom glass masks. However, once tooling is paid, the per-unit cost drops incredibly low. This makes them ideal for mass production.
Graphic displays present the opposite financial model. Standard, off-the-shelf dot-matrix modules usually require zero NRE fees. You can simply buy a single unit for prototyping. However, the complex internal circuitry drives the unit cost much higher. Over a production run of 100,000 units, standard dot-matrix panels will cost significantly more than custom etched glass panels.
Battery longevity serves as a critical specification for modern devices. Reflective segment screens excel here. They rely on ambient light rather than power-hungry backlights. Their power draw often measures in single-digit microamps (µA). A device can run for years on a single coin cell battery using this technology.
Dot-matrix displays consume considerably more energy. They demand continuous pixel refresh cycles. They also almost always require LED backlighting to remain legible. This drives their power consumption into the milliamp (mA) range. Devices using these screens typically require frequent recharging or larger lithium-ion battery packs.
Display choice directly impacts your overall system architecture. Simple etched glass can run on extremely basic hardware. Engineers often drive them using cheap 8-bit microcontrollers. Some microcontrollers even feature built-in segment drivers. This completely eliminates the need for external controller chips.
Pixel-grid displays demand serious computing power. They require larger RAM allocations to handle frame buffers. They need extra Flash memory to store custom fonts and image assets. You will also need faster communication buses, like SPI or parallel interfaces, to push data quickly. This forces design teams to purchase more expensive, capable microcontrollers.
Industrial applications demand robust components. Simpler display designs often yield wider operating temperature tolerances. A basic fixed-element display can survive freezing outdoor temperatures or intense industrial heat. Complex dot-matrix screens sometimes struggle in harsh environments. Their intricate active matrices can become sluggish or fail completely under extreme temperature fluctuations.
Evaluation Dimension | Fixed-Element Displays | Dot-Matrix Displays |
|---|---|---|
Unit Cost (High Volume) | Extremely Low | Moderate to High |
NRE Tooling Fees | Required (Custom Glass) | None (Off-the-shelf) |
Power Consumption | Microamps (µA) | Milliamps (mA) |
MCU Requirements | Basic 8-bit, minimal RAM | Advanced 32-bit, high RAM/Flash |
Environmental Durability | Excellent extreme temp tolerance | Moderate temp tolerance |
Many industries continue to rely on fixed-element architecture. The technology remains highly relevant despite the rise of full-color screens. Evaluating its strengths and risks ensures you deploy it correctly.
Maximum Battery Longevity: These panels represent the absolute gold standard for low-power operation. They perfectly suit devices requiring multi-year battery life. Smart utility meters, medical wearables, and digital thermostats rely heavily on this extreme efficiency.
Superior Direct Sunlight Readability: Outdoor legibility often creates engineering headaches. By utilizing reflective or transflective polarizers, these screens perform flawlessly in direct sunlight. The brighter the sun shines, the easier they are to read. They achieve this without utilizing a power-draining backlight.
Simplified Board Design: Designing the printed circuit board (PCB) is straightforward. Low pin counts and slow data speeds reduce electromagnetic interference (EMI) issues.
Zero UI Agility: Hardware defines the interface completely. Firmware updates cannot add new display features. If your marketing team decides to add a new operating mode next year, the current screen cannot display a new icon for it. You must manufacture an entirely new glass layout.
Volume Requirements: Custom designs require strict Minimum Order Quantities (MOQs). Manufacturers need to justify the setup time for custom glass masks. This makes custom etched panels risky for low-volume, niche products. If you only plan to sell 500 units, the initial NRE tooling costs will destroy your profit margins.
Limited Information Density: You can only fit a specific number of shapes onto the glass before the routing traces overlap. This physically limits how much data the user can see at one time.
Modern consumer expectations often demand modern interfaces. Pixel-grid architecture delivers the dynamic visual experience users expect from contemporary electronics. However, this flexibility introduces specific engineering challenges.
Future-Proof UX: Software updates can entirely overhaul the interface. You can redesign menus, add new diagnostic screens, or change layout structures years after the product launches. The physical screen hardware remains unchanged while the user experience evolves.
Rich Data Visualization: Some applications require more than static numbers. Dot-matrix panels excel at rendering dynamic charts, complex graphs, and fluid animations. This visual depth helps users interpret complex system diagnostics quickly and intuitively.
Global Localization: Selling globally requires multi-language support. A pixel grid can render English letters, Chinese characters, or Arabic script dynamically. You can build a single hardware SKU for the entire global market.
Hidden System Costs: The display module itself costs more upfront. However, buyers must also account for hidden system-level upgrades. You must purchase a more capable, expensive microcontroller to handle the frame buffer. You might also need external Flash memory to store high-resolution fonts.
Supply Chain Vulnerability: These modules rely on specific embedded display controllers like the ST7565 or ILI9341. If the controller chip goes End of Life (EOL) during the global chip shortage, your production line stops. Finding a drop-in replacement often requires rewriting your underlying display driver code.
Increased Power Dissipation: The constant refreshing of the pixel grid generates heat. The required LED backlighting drains batteries rapidly. This thermal and power load demands careful engineering oversight during the design phase.
Choosing the best screen requires matching your product requirements against the strengths of each technology. Use this framework to guide your initial shortlisting process.
The device runs on a coin cell battery. It requires a continuous operational life of five years or more.
The interface only needs to convey basic data. You only need to display large numerals for temperature, speed, or weight.
The user only needs static status indicators like battery bars or warning symbols.
Your expected production volume exceeds 10,000 units. High volumes easily absorb the initial custom tooling NRE costs.
The device operates exclusively outdoors. Maximum sunlight readability is a non-negotiable safety requirement.
The device connects to mains power permanently. Alternatively, it features a high-capacity rechargeable lithium battery.
The user experience requires deep navigation. Users must scroll through layered menus or read full-text diagnostic paragraphs.
You intend to sell the hardware globally. The firmware must support dynamically changing language fonts.
You are building a low-volume, high-margin product. Off-the-shelf component availability matters more than avoiding custom tooling fees.
Your marketing strategy relies on delivering software feature updates post-launch to add new functionalities.
Navigating the display selection process requires a clear understanding of your engineering limits. "Better" is completely dictated by your specific hardware constraints. Fixed-element displays easily win on pure hardware efficiency, longevity, and high-volume cost reduction. Pixel-grid displays win decisively on software flexibility, localization, and rich user experience design.
Your next steps should focus on establishing firm design boundaries. Advise your engineering team to outline their exact power budget first. Next, determine the processing capabilities of your chosen microcontroller. Do this before you even begin requesting display datasheets from suppliers.
Take action today to secure your design architecture. Contact our engineering team for a detailed BOM consultation. We can provide custom NRE tooling quotes or supply standard evaluation samples for your next prototype build.
A: The tooling cost remains relatively low. Expect to pay anywhere from a few hundred to a thousand dollars for the custom glass masks. This NRE fee is substantially cheaper than attempting to tool a fully custom graphic module, making it highly accessible for mass-market products.
A: Yes, it is possible. Manufacturers can apply transflective polarizers to dot-matrix panels. This allows them to reflect ambient sunlight for better legibility. However, this specific design choice limits viewing angles and significantly impacts the overall unit cost.
A: Character LCDs serve as a middle ground. They feature a fixed grid of predefined blocks designed specifically to hold standard letters and numbers. They offer more text flexibility than purely custom etched glass, but lack the freeform pixel control found in fully graphic panels.
A: No, you rarely need an external controller. Many modern, standard microcontrollers feature built-in hardware drivers specifically for driving etched glass pins. This integration eliminates the need for extra silicon on your circuit board, simplifying layout and reducing costs.
