Selecting the right hardware architecture can make or break your product. The physical and protocol layer you choose directly dictates microcontroller requirements, power budgets, and overall bill of materials cost. You must carefully navigate these variables early in the design phase.
Modern displays offer stunning resolutions. However, pushing massive pixel data requires the correct physical and protocol layer. Choosing the wrong setup leads to dropped frames, excessive electromagnetic interference (EMI), or unnecessary hardware upgrades.
This guide breaks down the engineering realities of I2C, SPI, RGB, and MIPI standards. Hardware teams will learn how to make evidence-based decisions for specific product architectures. You will uncover practical frameworks to align bandwidth needs with processor capabilities.
I2C is optimal for low-data text or basic graphics where minimizing pin count is the highest priority.
An SPI LCD module offers a balanced trade-off for small form factors (like wearables) requiring moderate refresh rates with minimal routing complexity.
An RGB TFT LCD delivers uncompressed, high-speed video for medium-sized screens but demands significant MCU pin allocation and RAM.
A MIPI LCD module is the industry standard for high-resolution, high-frame-rate displays, offering high bandwidth with low EMI, though it requires an advanced processor.
Proper LCD interface selection must account for FPC cable length, EMI compliance, and MCU memory limitations before finalizing the hardware schematic.
Engineers often treat the display as an afterthought. This approach creates a massive bottleneck. The LCD interface acts as the primary tollbooth between your processor's capability and the display's maximum potential. If you mismatch these components, you waste system resources or fail to achieve target frame rates.
Evaluate the fundamental trade-off between data rates and pin counts. Serial protocols save precious microcontroller (MCU) pins. This saving allows you to route smaller boards and use cheaper processors. However, they sacrifice raw data throughput. Parallel protocols provide immense throughput for fluid video. The downside involves consuming dozens of valuable General Purpose Input/Output (GPIO) pins. You must decide which resource you can afford to spend.
Memory overhead adds another layer of complexity. Some setups rely on display-side memory, commonly called Graphic RAM (GRAM). A display driver IC with built-in GRAM holds the current image frame. The host MCU can enter a deep sleep state, updating the screen only when the image changes. Conversely, parallel protocols typically lack GRAM. They require the host MCU to continuously stream frame buffer updates. This constant streaming prevents the MCU from sleeping, significantly increasing overall system power consumption.
The I2C architecture utilizes a simple two-wire serial bus. It relies on a Serial Data Line (SDA) and a Serial Clock Line (SCL). Multiple devices can share these two lines using unique hexadecimal addresses. This design drastically simplifies PCB routing.
An I2C LCD display excels in specific environments. We see them frequently in character LCDs, small monochromatic OLEDs, and basic status indicators. They dominate ultra-low-power IoT devices where routing space remains strictly limited.
However, I2C suffers from highly restricted bandwidth. Standard mode tops out at 100 kbps, while fast mode reaches 400 kbps. High-speed modes can theoretically hit 3.4 Mbps, but few cheap microcontrollers support this natively. Therefore, I2C remains completely incapable of handling smooth animations. It cannot drive high-resolution color TFTs. If your user interface requires fluid motion, I2C will fail.
SPI offers a faster alternative to I2C. The architecture typically uses a 3-wire or 4-wire serial bus. It requires lines for Master Out Slave In (MOSI), Master In Slave Out (MISO), Serial Clock (SCK), and Chip Select (CS). While it uses more pins than I2C, it still maintains a low overall footprint.

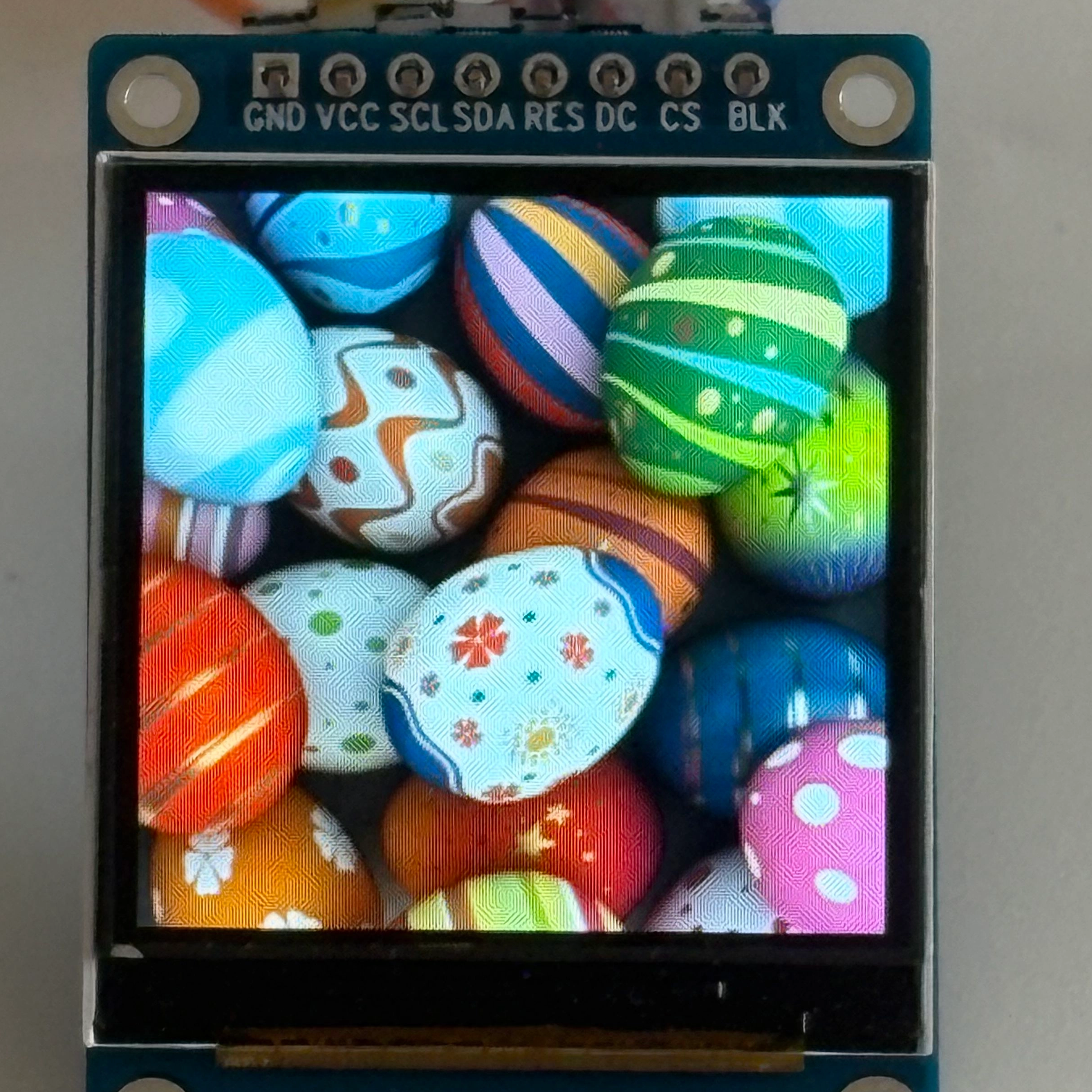

Smartwatches, handheld medical instruments, and IoT thermostats rely heavily on the SPI LCD module. They perfectly suit small TFT screens ranging from 1.5 inches to 2.4 inches.
SPI easily pushes data at 50 Mbps or higher. It strikes a favorable balance between speed and routing simplicity. Crucially, SPI requires the display driver IC to possess built-in GRAM. The screen holds the static image independently. Your MCU only sends data when a specific pixel changes. This localized memory drastically reduces the constant processing load on your main processor.
The RGB interface moves away from serial data transfer. It utilizes a parallel data bus, transferring entire pixels per clock cycle. Configurations typically run in 16-bit, 18-bit, or 24-bit color depths. It also demands synchronization signals, including VSYNC (Vertical Sync), HSYNC (Horizontal Sync), and DOTCLK (Pixel Clock).
An RGB TFT LCD handles raw video throughput exceptionally well. They dominate industrial HMIs, automotive dashboards, and medium-sized displays spanning 3.5 to 7 inches.
Despite the speed, RGB carries significant risks and realities. You must dedicate 20 or more MCU pins just for the display. It requires continuous data streaming because it lacks display RAM. The MCU must redraw the screen 60 times a second. Furthermore, routing two dozen high-speed traces across a PCB creates massive EMI vulnerability. If you route these traces too long or too close together, signal crosstalk will corrupt your image.
MIPI DSI represents the pinnacle of modern display connectivity. It abandons traditional single-ended signals. Instead, it uses high-speed differential signaling over dedicated lanes. A typical setup includes one clock lane and up to four data lanes.
Smartphones, VR headsets, and advanced medical imaging devices depend on the MIPI LCD module. You must use this standard for any application requiring 720p resolution or higher.
MIPI delivers an exceptional bandwidth-to-pin-count ratio. Differential signaling cancels out ambient noise, resulting in very low EMI profiles. However, integration proves difficult. You cannot drive MIPI directly from a basic 8-bit microcontroller. It requires a higher-end Application Processor (AP) or a specialized MCU featuring a dedicated MIPI-DSI host controller block.
Choosing the correct protocol requires mapping your project specifications to hardware realities. Proper LCD interface selection prevents costly board respins. Use targeted thresholds to eliminate unviable options early.
Resolution and framerate thresholds provide the clearest boundaries. You can generally follow these guidelines:
Under 320x240: SPI or I2C easily handle these pixel counts.
480x272 to 800x480: RGB provides the most cost-effective solution here, though advanced SPI can work for static UIs.
720p and above: MIPI becomes mandatory to push the required pixel clock.
Table: Hardware Selection Framework Matrix
Interface | Pin Count | Max Resolution (Typical) | Host MCU Load | EMI Risk Profile |
|---|---|---|---|---|
I2C | 2 | 128x64 (Monochrome) | Very Low | Low |
SPI | 4 to 6 | 320x240 (Color) | Low (GRAM required) | Moderate |
RGB Parallel | 20+ | 800x480 (Color) | High (Continuous) | High |
MIPI DSI | 4 to 10 | 4K+ (Color) | Moderate (Hardware Block) | Very Low |
Power consumption limits also force specific decisions. You must compare device sleep states against active driving power. SPI modules equipped with local GRAM allow the host MCU to sleep entirely. This setup saves tremendous battery life for wearables. Conversely, RGB keeps the MCU awake continuously. Even displaying a static image drains the battery because the MCU must refresh the panel constantly.
Signal integrity and EMI compliance ruin many hardware projects late in the development cycle. Address the reality of hardware compliance early. Fast single-ended signals on RGB lines act like tiny antennas, radiating noise across your PCB. Differential signals used in MIPI effectively mitigate EMI. They provide a much safer choice for sensitive RF devices or medical environments where emissions testing is strictly enforced.
Theoretical bandwidth matters little if you cannot physically build the device. Flexible Printed Circuit (FPC) routing limitations often dictate the final choice. Routing a 40-pin RGB interface through a tight mechanical hinge proves nearly impossible without causing material fatigue. A wide, rigid FPC will snap after repeated bends. In contrast, you can route a low-pin-count MIPI or SPI FPC through extremely tight enclosures safely.
Sometimes the ideal display panel does not match your legacy MCU. Bridge IC solutions offer a practical workaround. Engineers often employ SPI-to-RGB or RGB-to-MIPI bridge chips. These chips translate the signal protocol in real-time. While effective, they introduce penalties. You must budget for the extra component cost. Furthermore, they consume valuable PCB real estate and increase overall system power consumption.
Driver IC availability adds a logistical hurdle. Supply chain realities dictate many engineering choices. Certain highly optimized display driver ICs only support specific protocols. If a global chip shortage hits your preferred SPI driver, you might have to redesign the board for an available RGB alternative. You must verify component availability before finalizing your schematic.
Relying solely on off-the-shelf standard modules carries hidden risks. Standard displays often fail mechanical or optical requirements during the final integration stage. The mounting tabs might align poorly, or the standard FPC might exit the glass at the wrong angle for your specific enclosure.
Partnering with a custom TFT LCD manufacturer unlocks vital customization options. You can tailor the FPC pinout to match your mainboard precisely. This modification eliminates the need for messy crossover cables. You can also modify backlights for high-brightness outdoor readability. In advanced cases, you can integrate a custom bridge IC directly onto the display flex, freeing up space on your main PCB.
Vendor evaluation requires strict criteria. Look for a display partner offering comprehensive in-house engineering support. They should provide functional initialization code to jumpstart your firmware development. Evaluate their EMI testing capabilities to ensure the display will not fail your FCC or CE certifications. Finally, secure long-term component lifecycle guarantees so your product does not face sudden obsolescence.
Interface selection requires balancing raw resolution demands, MCU processing constraints, and physical routing limitations.
Avoid over-engineering; do not select a parallel RGB setup if an SPI module with internal GRAM handles your static UI needs efficiently.
Prioritize differential signaling like MIPI when designing devices requiring strict EMI compliance or tight mechanical hinges.
Bridge chips provide viable workarounds but penalize your bill of materials cost and PCB footprint.
Your immediate next step involves physical testing. Always advise your engineering team to request datasheets and evaluation kits (EVKs) for shortlisted panels. Prototyping the actual display driver code on an EVK before committing to a final PCB layout saves thousands of dollars in revisions.
A: Yes, but only by using an external bridge IC. Standard RGB panels lack internal memory and cannot decode serial SPI commands. A bridge chip accepts your SPI data, stores it in its own frame buffer, and continuously outputs the parallel RGB timing signals required by the panel.
A: I2C and SPI consume the least system power. Both protocols allow the display driver to use internal GRAM to hold the image. This enables the host microcontroller to enter a deep sleep state. Keep in mind, backlight power dominates total consumption regardless of the chosen data protocol.
A: No. MIPI requires specialized high-speed differential signaling physical layers (D-PHY). Older or basic 8-bit/16-bit MCUs lack these dedicated hardware blocks. To use a MIPI display with a legacy MCU, you must integrate an active bridge chip on your PCB, which complicates routing.
A: SPI signals degrade quickly due to trace capacitance. Generally, you should keep SPI traces under 15 centimeters. Running high-speed SPI clocks over longer cables causes signal reflection and rounding, leading to corrupted data. If you need longer distances, you must lower the clock speed significantly.
