A single failing LCD in the field can trigger a cascade of costly consequences, from product recalls and warranty claims to irreparable brand damage. For industrial, medical, and automotive applications, the evaluation of an LCD has shifted dramatically. It's no longer enough for a screen to simply display a visible image upon initial power-up. The true measure of quality is its ability to perform reliably over years of thermal stress, vibration, and environmental exposure. This is why rigorous, component-level testing is not an optional expense but a fundamental pillar of product success. This guide provides a professional, technical framework for evaluating the quality and durability of LCD Display Components during procurement and quality assurance, ensuring your final product meets the highest standards of long-term performance.
Four-Pillar Testing: Quality is defined by Electrical, Visual, Functional, and Environmental performance.
Standardization Matters: Use AQL (Acceptable Quality Level) and MIL-STD-105D to quantify "acceptable" defects.
Durability is Environmental: Testing must simulate real-world stressors like UV exposure, thermal cycling, and humidity.
Manufacturer Transparency: A reliable LCD display components manufacturer should provide AOI and X-ray inspection data for internal PCB/soldering integrity.
Before a display component faces harsh environmental challenges, it must first prove its fundamental electrical and visual integrity. This foundational stage of testing verifies that the component operates precisely as specified in its datasheet and delivers a flawless visual experience under ideal conditions. It sets the baseline for all subsequent durability assessments.
A component's electrical stability is the bedrock of its performance. Any deviation from the manufacturer's datasheet can lead to cascading failures, from image flicker to complete system shutdown. Verification involves precise measurements and stress tests.
Voltage, Current, and Resistance: Using multimeters and oscilloscopes, technicians verify that the module’s power consumption, signal voltage levels, and internal resistance fall within the specified tolerances. This ensures compatibility with the host system's power delivery and logic levels.
Power Consumption Stability: This test goes beyond a simple wattage check. It analyzes power draw under various loads, such as displaying a completely white screen versus a black one. Unstable power consumption can indicate internal component issues and is a leading cause of premature backlight aging, as fluctuating currents degrade the LEDs over time.
A visually perfect display is free of artifacts, distortions, and inconsistencies. This requires testing beyond a simple "power on" check, using specialized patterns and controlled environments to reveal subtle flaws.
The ability to render smooth transitions between shades is critical for displaying detailed images. We use grayscale patterns with 16, 64, and even 256 levels to test this. A low-quality display will exhibit "tone jumps" or "banding," where distinct steps are visible instead of a seamless gradient. This indicates an issue with the gamma correction or driver IC's ability to process the full color depth.
Uniformity ensures that the color and brightness are consistent across the entire surface of the display. Testers look for common defects like "hot spots" (overly bright patches), dimming near the edges, or color shifts. High-end testing uses photometers and benchmarks against standards set by Digital Uniformity Equalizer (DUE) technologies to quantify these variations, ensuring that a single color appears identical no matter where it is on the screen.

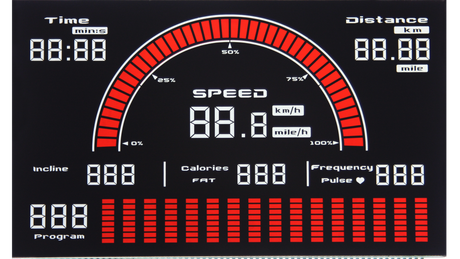

For many applications, a display must be legible from various angles. However, professional testing moves beyond simple visibility. The critical metric is "color shift." While a TN (Twisted Nematic) panel might be visible at 160 degrees, its colors may become distorted and inverted. In contrast, IPS (In-Plane Switching) and VA (Vertical Alignment) panels are tested to confirm they maintain color fidelity across much wider angles, which is essential for collaborative or public-facing displays.
No manufacturing process is perfect, so defining acceptable tolerances for pixel defects is crucial. These defects are classified into distinct types, each with its own acceptable limit based on industry standards like ISO 9241.
Bright Pixels: A pixel that is permanently "on," appearing as a white dot on a black screen.
Dark Pixels: A pixel that is permanently "off," appearing as a black dot on a white screen.
Sub-Pixel Anomalies: A defect in one of the red, green, or blue sub-pixels, causing a pixel to display an incorrect color permanently.
An LCD that performs perfectly in a lab is of little use if it fails in its real-world operating environment. Environmental Stress Screening (ESS) is a series of accelerated tests designed to simulate the lifetime stresses a display will endure, from intense sunlight and temperature swings to mechanical shock.
For any display used outdoors, in vehicles, or even near a sunlit window, long-term exposure to ultraviolet (UV) radiation is a primary cause of degradation. To simulate years of sun exposure in a matter of days or weeks, labs use specialized equipment.
Xenon Arc Lamp Chambers: These devices produce a light spectrum that closely mimics natural sunlight. Placing LCD Display Components inside allows testers to accelerate the aging process.
Failure Mode Evaluation: After exposure, components are inspected for common UV-induced failures. This includes the yellowing or "burning" of polarizers, which distorts color, and the degradation of adhesives, which can lead to delamination of display layers.
Electronic components expand and contract with temperature changes, and moisture can cause short circuits or corrosion. This testing pushes the display to its operational and storage limits to ensure it can survive.
Temperature Limits: A chamber cycles the display between its minimum operational temperature (e.g., -20°C) and its maximum (e.g., +70°C) while the device is running. Testers look for issues like "cold start" lag, where the liquid crystals respond sluggishly at low temperatures, or driver IC failure at high temperatures. Storage limits, which are often wider, are also verified.
Humidity Exposure: This test exposes the component to high-humidity environments (e.g., 85% RH at 85°C) to identify weaknesses in its sealing. The goal is to ensure that moisture cannot ingress and cause condensation on internal components, which could lead to short circuits.
Displays used in industrial machinery, transportation, or handheld devices must withstand constant vibration and occasional impacts. Mechanical testing validates the physical robustness of the assembly.
Vibration and Shock Testing: The component is mounted to a vibration table that simulates the frequencies and G-forces it would experience in its target application. This test is excellent at uncovering weak solder joints, loose internal connectors, or potential frame fractures.
- Surface Hardness and Scratch Resistance: The durability of the outermost layer (often glass or a protective film) is critical. Its scratch resistance is often measured on the Mohs scale of mineral hardness. This ensures the display can resist damage from everyday contact, cleaning, or accidental impacts.
To move from subjective assessments ("it looks good") to objective, repeatable quality control, manufacturers rely on established industrial standards. These frameworks provide a common language for defining what constitutes an acceptable defect, ensuring consistency across millions of units.
It is not economically feasible to inspect every single component in a large production run. Instead, a statistical sampling method called Acceptable Quality Level (AQL) is used. It defines the maximum percentage of defective components that can be considered acceptable during the random sampling of a batch.
The implementation is typically governed by military standards like MIL-STD-105D. This framework categorizes defects based on their severity:
Defect Class | Typical AQL | Examples |
|---|---|---|
Major Defect | 0.65% | No display, wrong image shown, missing segments, incorrect dimensions, backlight failure. |
Minor Defect | 2.5% | Slight bezel scratch, minor pinholes in polarizer, small dust particle under the screen, slight brightness non-uniformity. |
If the number of defects found in the sample exceeds the AQL threshold, the entire batch is rejected for further inspection or rework.
For visual inspections to be consistent, the environment must be strictly controlled. Without standardization, a defect visible to one inspector might be missed by another.
Lighting Requirements: A common standard is using two 20W fluorescent lamps positioned at a specific distance (e.g., 100mm) from the unit under test. This ensures uniform illumination without glare.
The "45-Degree Rule": Inspectors view the display from multiple angles, often tilting it at 45 degrees, to catch surface defects like scratches or bubbles that are not visible from a direct-on view.

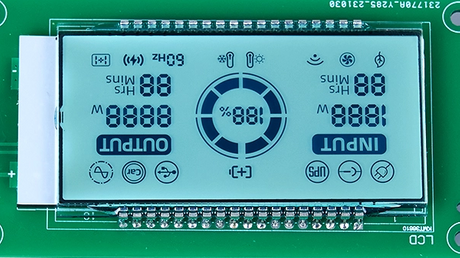

Many display failures originate not in the glass itself but in the connection between the display driver and the circuit board. The microscopic solder joints in a Chip-on-Glass (COG) or Chip-on-Board (COB) assembly are common points of failure.
Automated Optical Inspection (AOI): A high-speed camera system scans the PCB, comparing it to a "golden sample." It can instantly detect issues like solder bridges (short circuits), missing components, or incorrect component placement.
X-ray Inspection: For defects hidden underneath components, such as in a Ball Grid Array (BGA) package, X-ray inspection is used. It can see through the chip to identify cold solder joints (incomplete fusion) or voids (air bubbles) that could lead to intermittent connections and eventual failure.
Focusing solely on the initial unit price of an LCD component is a common but costly mistake. A comprehensive evaluation considers the Total Cost of Ownership (TCO), which accounts for all expenses incurred over the product's entire lifecycle. Choosing robust, well-tested components significantly lowers TCO, even if their initial cost is higher.
The allure of a "cheap" component can quickly fade when faced with the realities of field failures. These hidden costs can dwarf any initial savings.
Field Failures and RMA Logistics: Each failed unit requires costly logistics for return merchandise authorization (RMA), including shipping, diagnosis by a technician, repair or replacement, and return shipping. This doesn't even account for the cost of customer dissatisfaction.
The ROI of Backlight Longevity: The backlight is often the first component to degrade. Choosing components with a specified backlight half-life of 50,000 hours or more provides a clear return on investment. It translates directly to a longer product service life and fewer replacements, making it a critical metric for industrial or commercial-grade High Quality LCD Display Components.
When selecting a supplier, their commitment to quality testing should be a primary consideration. A trustworthy partner will be transparent about their processes and possess the certifications to back them up.
Customized Testing Capabilities: Can the manufacturer accommodate custom driving patterns for testing? This is crucial for simulating your specific use case and ensuring the display performs optimally with your software.
Compliance and Certifications: Look for internationally recognized quality management certifications like ISO 9001:2015. Additionally, compliance with IEC (International Electrotechnical Commission) standards for display measurement and safety demonstrates a commitment to global best practices.
Bill of Materials (BOM) Transparency: A transparent manufacturer will maintain a consistent BOM, ensuring that the driver IC, polarizers, and LEDs used in batch 1,000 are the same as those used in batch 1. This prevents unexpected performance variations and ensures long-term product consistency.
Even the highest quality components require effective lifecycle management. Understanding common failure modes, making informed repair decisions, and implementing preventive strategies are key to maximizing the operational life of any LCD display.
When a display fails, accurately identifying the root cause is essential for an effective solution. Some common issues include:
Backlight Aging vs. Inverter Failure: A dimming screen is often attributed to an aging LED backlight. However, the issue could also be a failing inverter or power supply board that is no longer providing adequate voltage to the backlight. Measuring the output voltage can quickly differentiate between these two causes.
Connection Issues: Intermittent flickering or lines on the screen often point to a connection problem. Over time, vibration can misalign zebra strip connectors, while humidity can cause oxidation on flexible ribbon cable contacts. Reseating or cleaning these connections is a common first step in troubleshooting.
Deciding whether to repair a faulty module or replace it entirely depends on cost, downtime, and complexity. A simple decision matrix can guide this choice.
Scenario | Recommendation | Justification |
|---|---|---|
Single, identifiable component failure (e.g., backlight) | Repair | Component-level repair is cost-effective if the rest of the module is in good condition. |
Multiple symptoms or cracked glass | Replace | Multiple failures indicate widespread degradation. The cost and complexity of repair outweigh the benefits. |
Module is near its rated service life | Replace | Even if repaired, other components are likely to fail soon. Replacement with a newer, more efficient model is wiser. |
Proactive measures can significantly extend the service life of an LCD module and reduce the likelihood of premature failure.
Brightness Capping: Operating an LCD at 100% brightness continuously generates significant heat and accelerates backlight aging. Capping the maximum brightness at 80-90% can dramatically increase the backlight's lifespan with minimal perceptible difference to the user.
Thermal Management: Ensure the device housing provides adequate ventilation. Overheating is a primary enemy of all electronic components, especially the display driver IC and power supply. Preventing heat buildup is one of the most effective maintenance strategies.
Thoroughly testing LCD display components is not a single event but a comprehensive process. It demands a rigorous, multi-stage protocol that encompasses electrical performance, visual perfection, environmental durability, and adherence to global quality standards. From verifying power consumption against a datasheet to simulating a decade of sun exposure in a Xenon chamber, each test builds a layer of confidence in the final product's reliability.
Ultimately, the most effective strategy is to move beyond simple end-of-line spot checks. The key is to partner with a manufacturer that integrates these demanding tests directly into their standard production workflow. This proactive approach to quality assurance is the most reliable way to reduce total cost of ownership, prevent field failures, and build products that endure.
A: The most common causes are related to heat and backlight aging. Excessive heat degrades all electronic components, particularly the driver ICs and power supply. The LED or CCFL backlight itself has a finite lifespan, typically measured in tens of thousands of hours, and it will naturally dim over time. Operating the display at maximum brightness continuously accelerates this aging process significantly.
A: To test for backlight bleed, you need a controlled, dark environment to make the light leakage visible. Display a completely black image on the screen in a dark room. Observe the edges of the display for any patches of white or gray light "bleeding" through. For more precise results, use a photometer to measure the luminance levels at various points around the bezel and compare them to the center of the screen.
A: The primary differences are in operating temperature range and component longevity. Industrial-grade components are designed to operate reliably in much wider temperature ranges (e.g., -30°C to +80°C) compared to consumer-grade (e.g., 0°C to +50°C). They also use more durable materials and components, such as backlights rated for 50,000+ hours of operation, to ensure long-term reliability in demanding 24/7 environments.
A: The number of acceptable dead pixels is defined by standards like ISO 9241-302. This standard classifies displays into different classes and defines tolerances for various types of pixel faults (bright, dark, sub-pixel). For example, a Class I panel allows for zero pixel faults, while lower classes allow for a small number per million pixels. The specific acceptable number depends on the agreed-upon quality standard between the buyer and the manufacturer.
