Full-View TFT Display for Industrial

Availability:
Quantity:

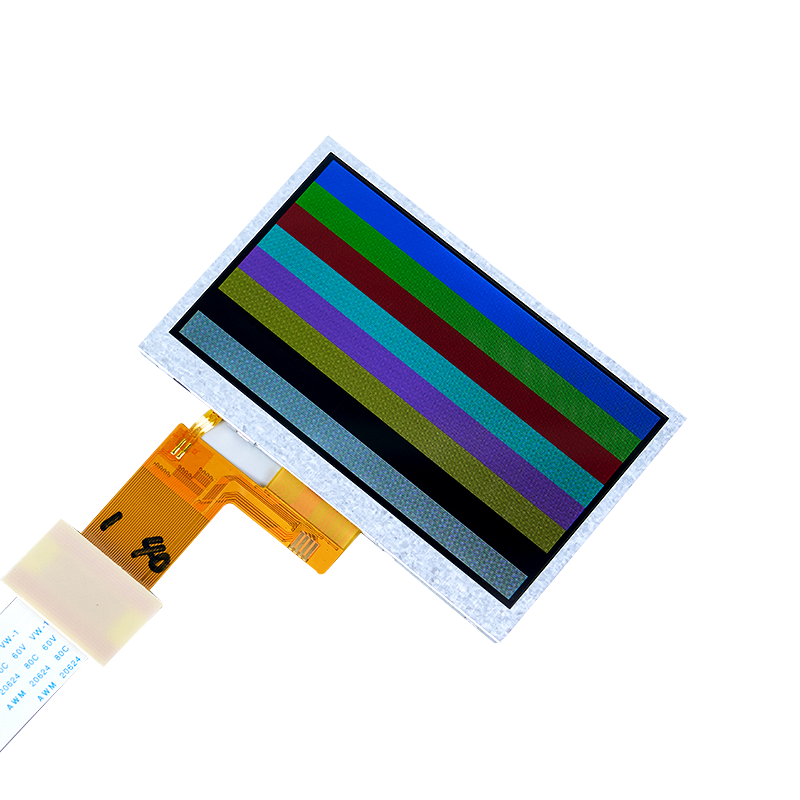

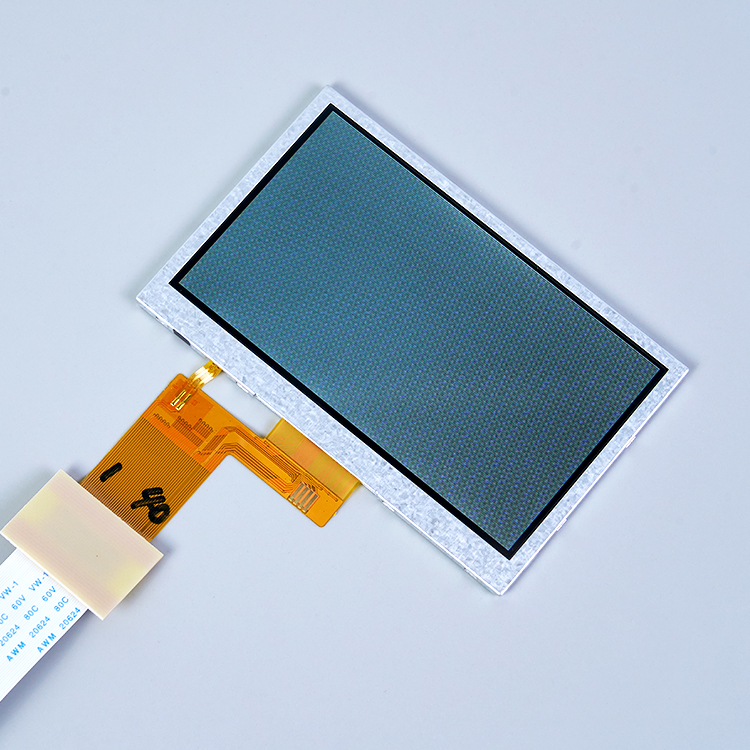

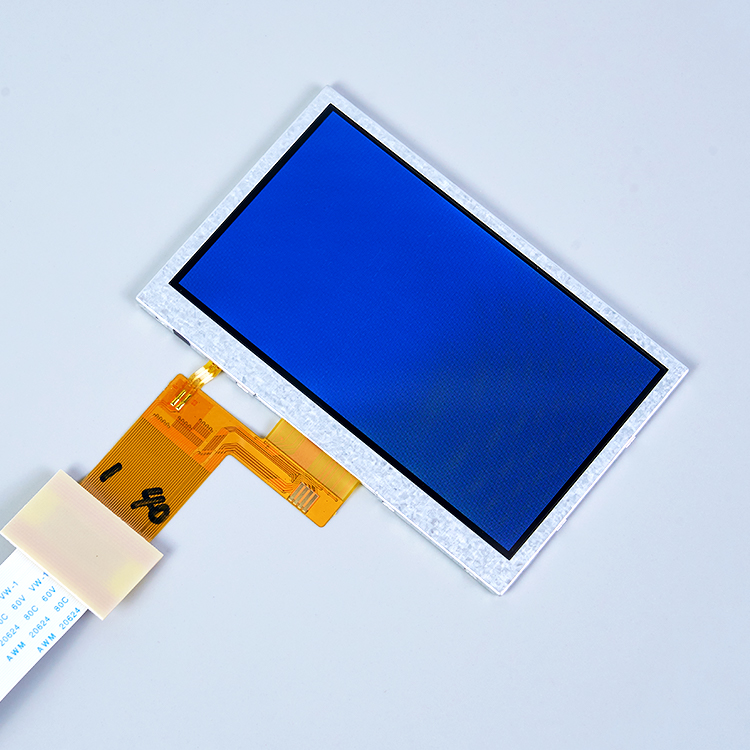

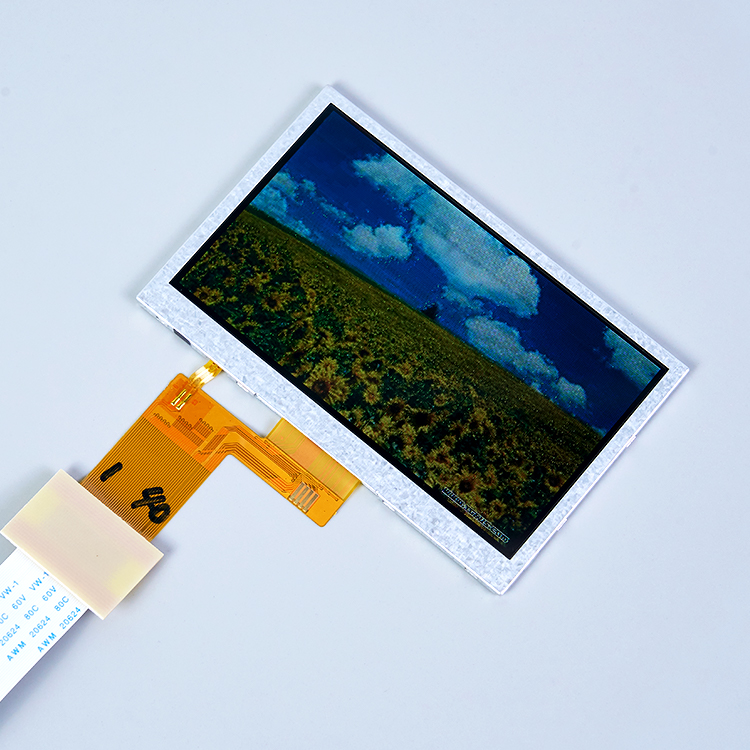

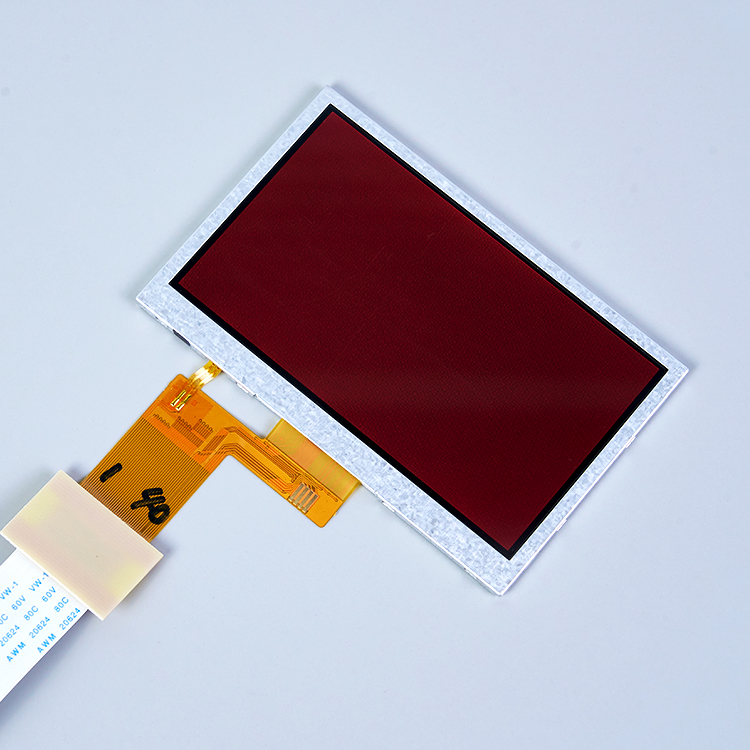

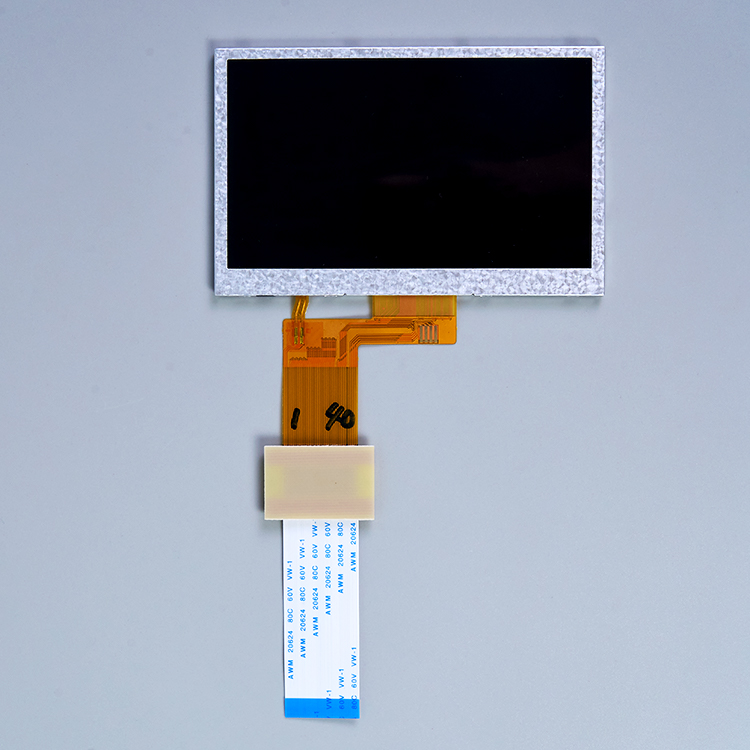

The JR-TFT043I02A is a 4.3-inch IPS TFT display module engineered for medical, smart-home, and industrial HMI terminals where space is constrained but image consistency is not negotiable. At 480×272 resolution with IPS full-viewing-angle technology, it maintains stable color, contrast, and clarity from any position around the panel—eliminating the color cast and edge darkening that compromise multi-person collaboration on industrial consoles and medical diagnostic terminals. The 350-nit brightness and 1000:1 contrast ratio keep interface text, waveforms, and status indicators legible in indoor environments, while the 24-bit RGB interface and NV3047 driver IC provide a well-defined integration path for terminal manufacturers. At 105.2×67.2×2.92 mm, the module balances a 95.04×53.86 mm active area against a footprint that fits compact device enclosures. Each unit is optically validated with BM-7 equipment and subjected to high-temperature, low-temperature, and high-humidity testing, supporting the long-term reliability expected in portable medical instruments and industrial control panels. For volume programs, the 4.3-inch format is no niche choice: it accounted for 42% of industrial HMI display shipments in 2023, with compound annual growth in industrial IoT forecast to remain at 26% through 2027.

Our business partners involve a wide scope including instrument and meters, industrial control applications, intelligent appliances, heating system, medical instrument, communication module, finance device, elevator, electro mobile, automotive instrument and so on.
