White Backlight LCD Module for Electronic Scale

Availability:
Quantity:

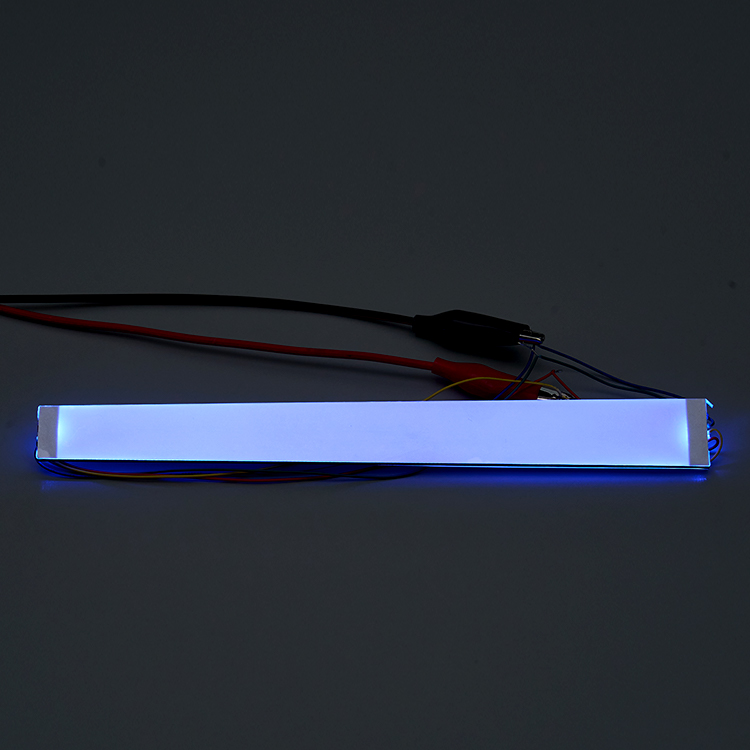

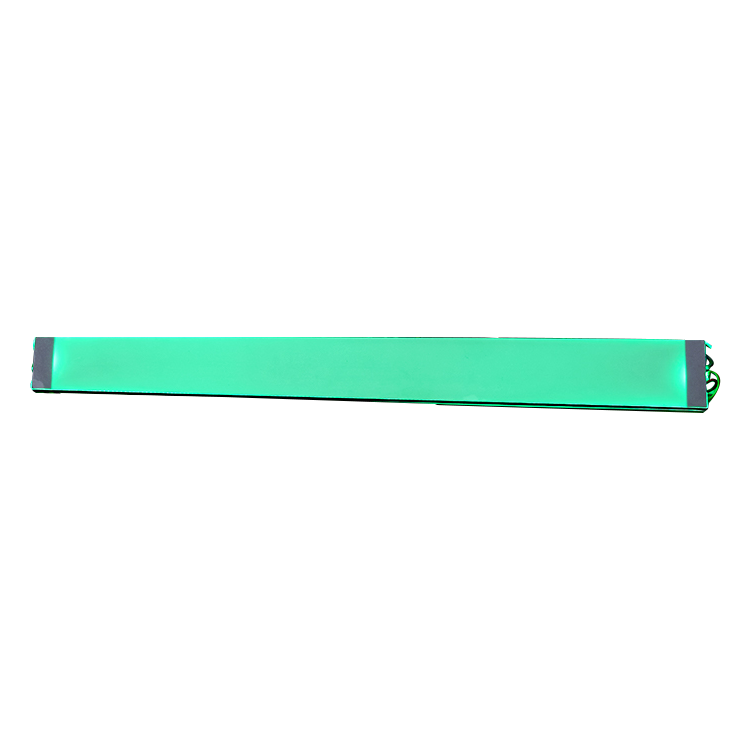

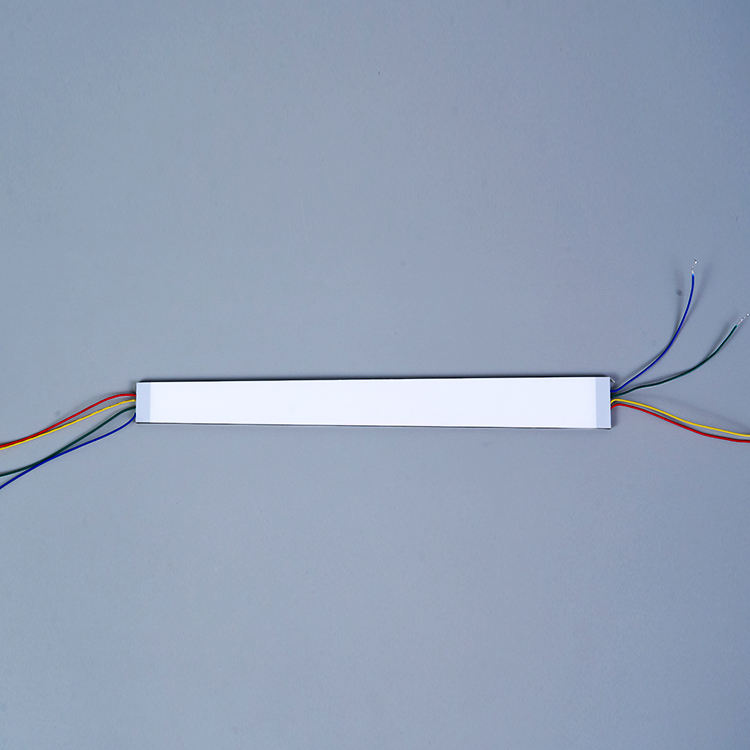

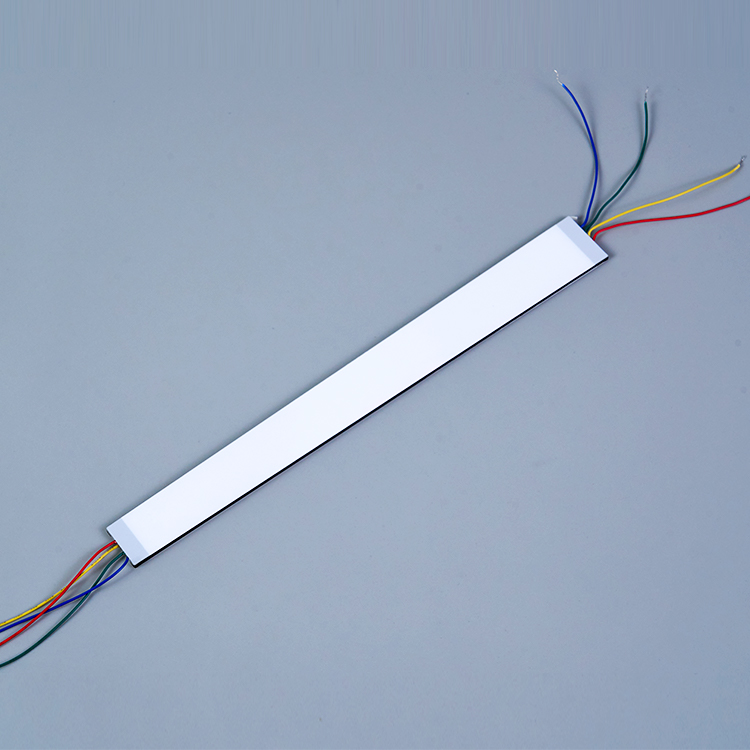

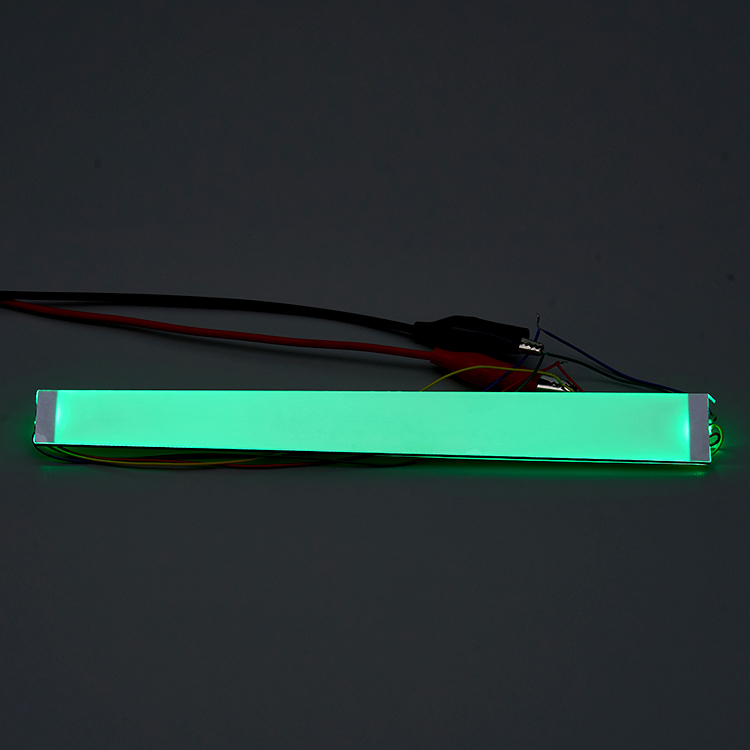

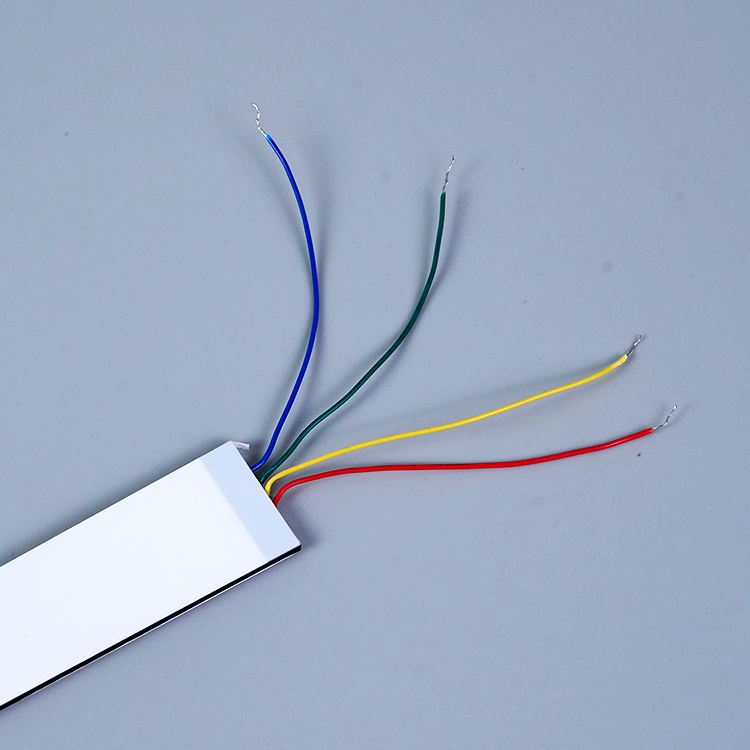

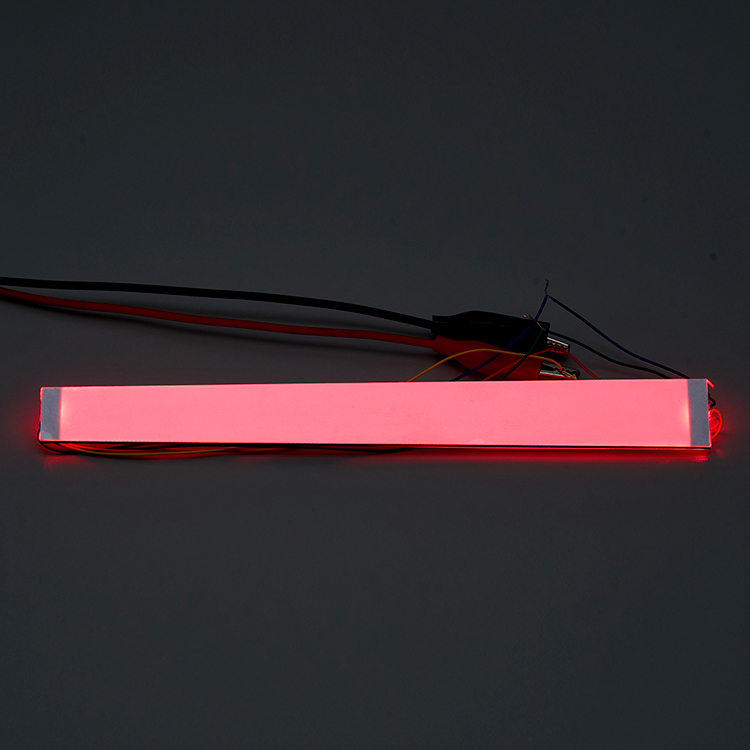

This white/RGB backlight module is built for the display bars of height-measuring electronic scales, where weight, height, and BMI must remain legible across a long, narrow viewing area. Its 199.0 × 21.8 × 2.2 mm format and 187.0 × 21.8 mm active area fit the top-bar envelope of height-weight scales without adding thickness. The 2-LED circuit at If = 15 mA draws roughly half the power of a 4-LED design, extending battery life in portable retail and healthcare scales. BM-7 optical testing holds brightness variation to ±5% across the long active area, preventing the uneven readability that long-bar backlights are prone to. Operating from −10°C to +60°C covers cold-chain logistics and warm retail environments. The same module also serves other LCD displays that sit behind luminous product fascias, where a low-profile, uniformly lit strip is required.
Our business partners involve a wide scope including instrument and meters, industrial control applications, intelligent appliances, heating system, medical instrument, communication module, finance device, elevator, electro mobile, automotive instrument and so on.
