| This backlight is mainly used for air conditioning line controllers and various floor heating and water heating line controllers products. | |||||||||
Equipped with S206 high-brightness white LED beads, delivering 300 CD/M2 brightness—visible even in direct sunlight (e.g., window-mounted AC units).
Uniform backlight distribution: No hotspots, ensuring consistent visibility of temperature, fan speed, and mode icons.
Low-voltage drive (2.7V~3.0V) reduces power consumption by 25% compared to 5V backlight modules, aligning with energy-saving HVAC trends.
Mercury-free LED technology: Complies with global environmental standards (RoHS, LEED), avoiding pollution during disposal.
FPC interface supports flexible PCB integration, fitting curved or slim AC controller designs.
AA area size (69.8mm X 45.5mm) can be adjusted to match different controller panel sizes (e.g., wall-mounted vs. portable ACs).
![]() | ![]() | ![]() | ![]() |
Grand View Research reports the global HVAC system market will reach $382.66 billion by 2030 (7.5% CAGR, 2025–2030). Key drivers for the JR-SD7858AW4:
Global AC shipments: 221 million units in 2025 (12.9% YoY growth), with 90% requiring backlit controllers.
Smart HVAC adoption: 65% of new ACs feature digital controllers by 2024, demanding high-quality backlight modules.
European/Asian demand: Europe’s floor heating market (40% global share) and Asia’s portable AC growth drive need for custom controllers.
Tested with BM-7 professional optical equipment: Ensures brightness, contrast, and color consistency across all modules.
1000-hour high-humidity (90% RH) testing: Prevents backlight fogging in humid climates (e.g., Southeast Asia).
LED backlight lifespan: 50,000 hours (equivalent to 10 years of 14-hour daily use), matching AC unit lifespans.
Simple driver circuit: Reduces component failure risk, lowering AC controller maintenance costs.

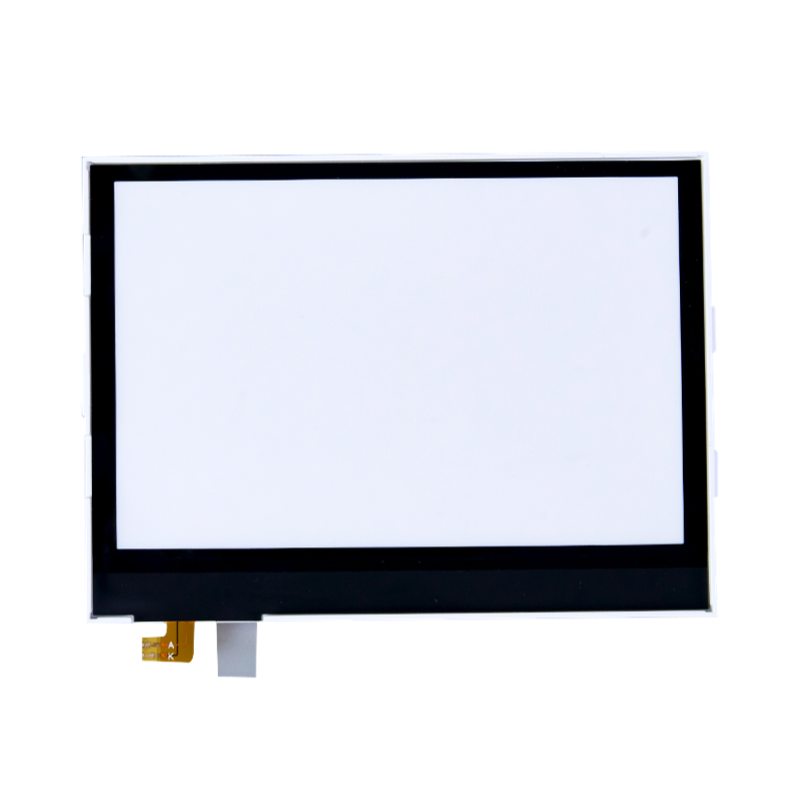

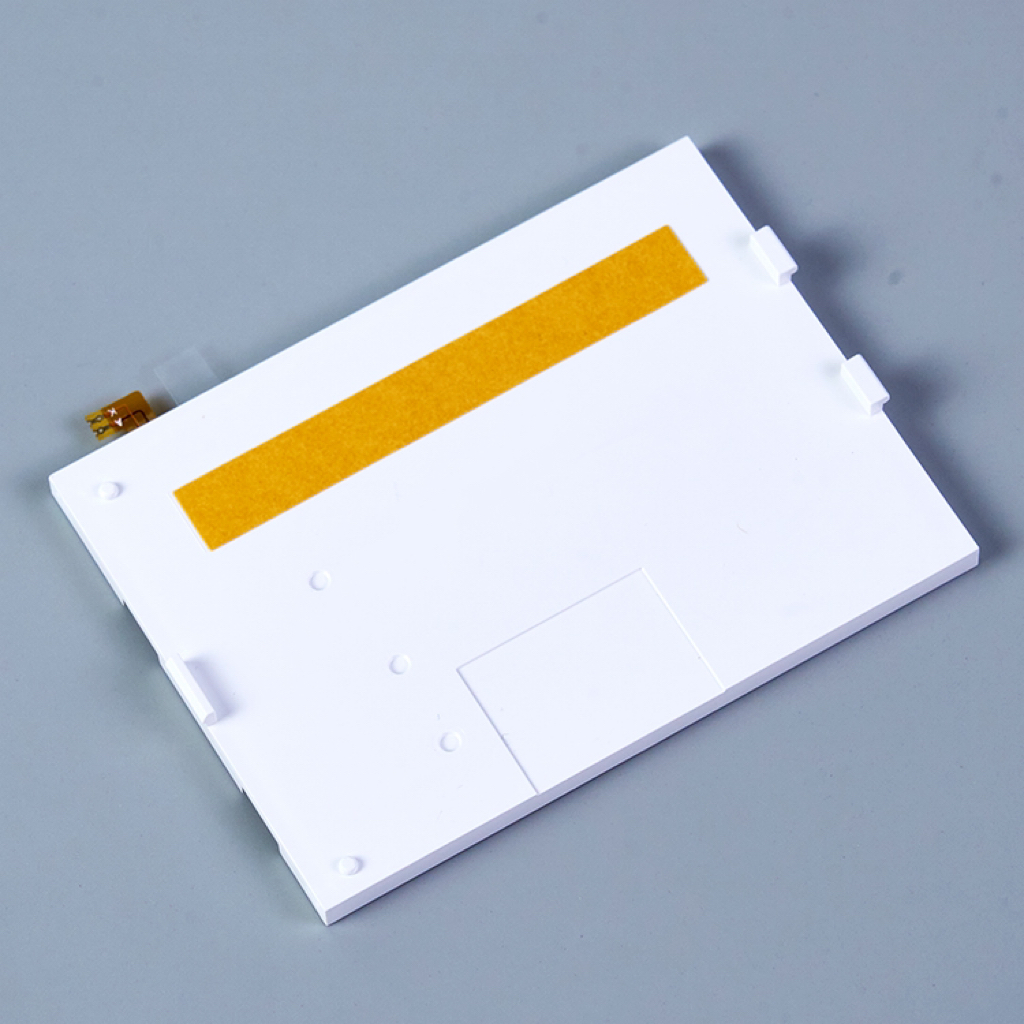

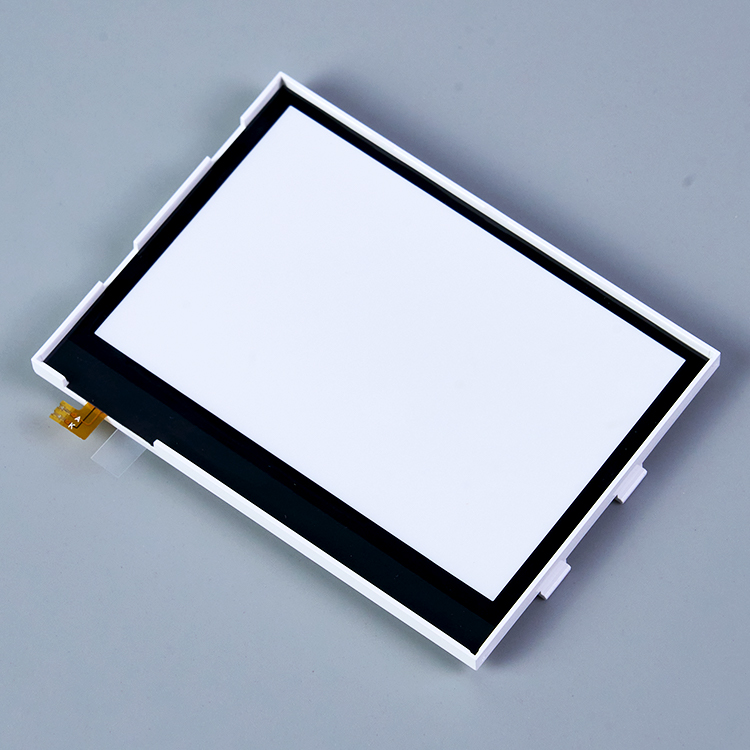

This module's model number is JR-SD7858AW4, with an FPC interface. It uses S206 high-brightness white light beads as its LED bead type. The overall dimensions are 77.5mm X 57.5mm X 3.8mm, and the AA area size is 69.8mm X 45.5mm. It operates on a power supply voltage ranging from 2.7V to 3.0V, with a brightness of 300CD/M2. The backlight circuit includes 4 LEDs, with a forward current (If) of 60mA and a forward voltage (Vf) of 2.9V. It also complies with environmental standards including RoHS, REACH, and LEED.
| Product specification information | |
| Model | JR-SD7858AW4 |
| Interface | FPC |
| LED bead | S206 high brightness white light bead |
| Overall dimensions | 77.5*57.5*3.8mm |
| AA area size | 69.8mm X45.5mm |
| Power supply voltage | 2.7V~3.0V |
| Brightness | 300CD/M2 |
| Backlight circuit | 4LED If=60mA, Vf =2.9V |
Residential wall-mounted ACs: Displays temperature, mode (cool/heat), fan speed, and timer settings.
Portable ACs: Slim design fits compact controller panels, showing cooling capacity and filter status.
Floor heating line controllers: Visualizes set temperature, room temperature, and heating duration.
Water heating line controllers: Displays water temperature, energy usage, and anti-freeze mode.
![]() | ![]() | ![]() | ![]() |
Yes. We offer blue, warm white, and green backlights to match brand aesthetics (e.g., warm white for premium AC lines).
Yes. The low power consumption and FPC interface integrate seamlessly with Wi-Fi MCUs (e.g., ESP8266), without affecting battery or power adapter life.
MOQ for custom AA area or interface is 500 units. Standard models have no MOQ restrictions.
